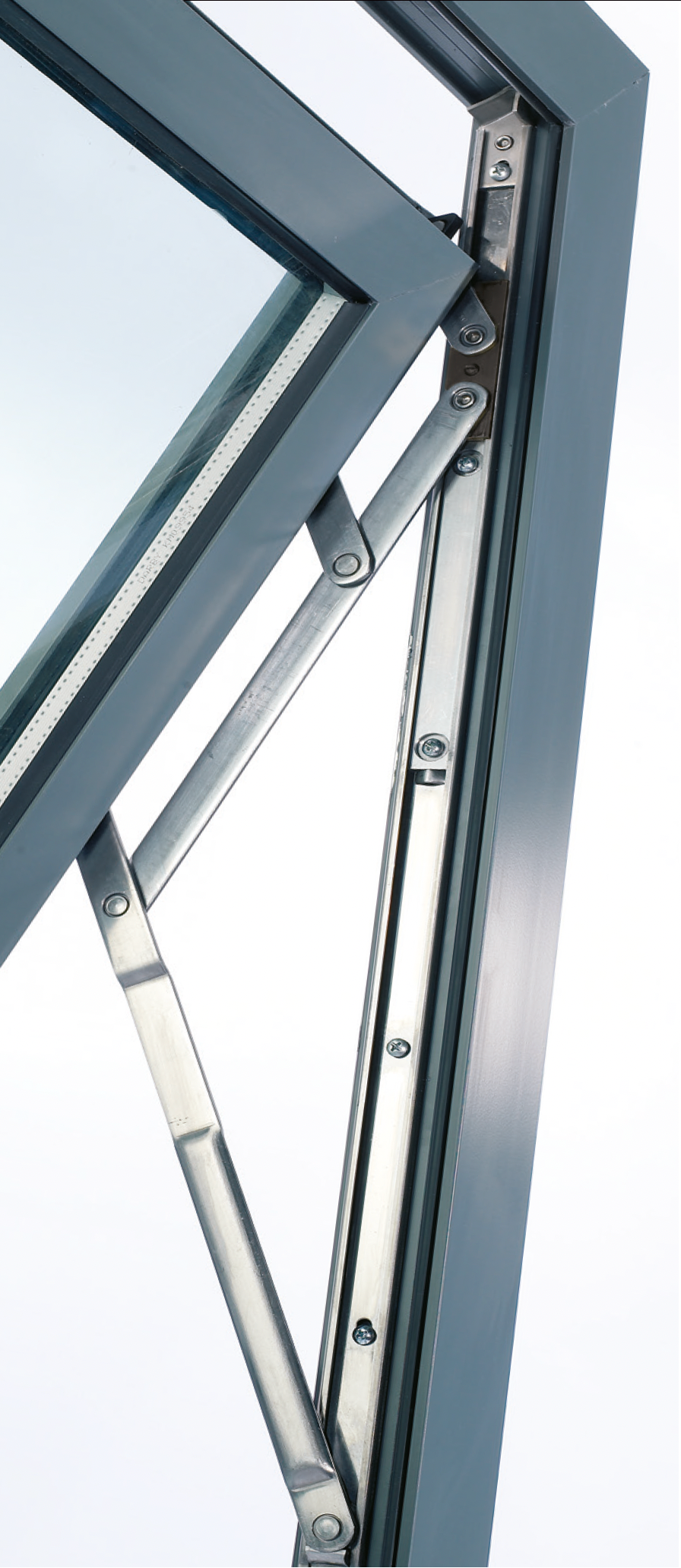

Triad Heavy Duty Friction Stays
Triad Heavy Duty Friction Stays

Triad Heavy Duty Friction Stays

£0.00 GBP
    • A range of heavy duty top and side hung variants
    • Suitable for commercial applications including Aluminium and Timber

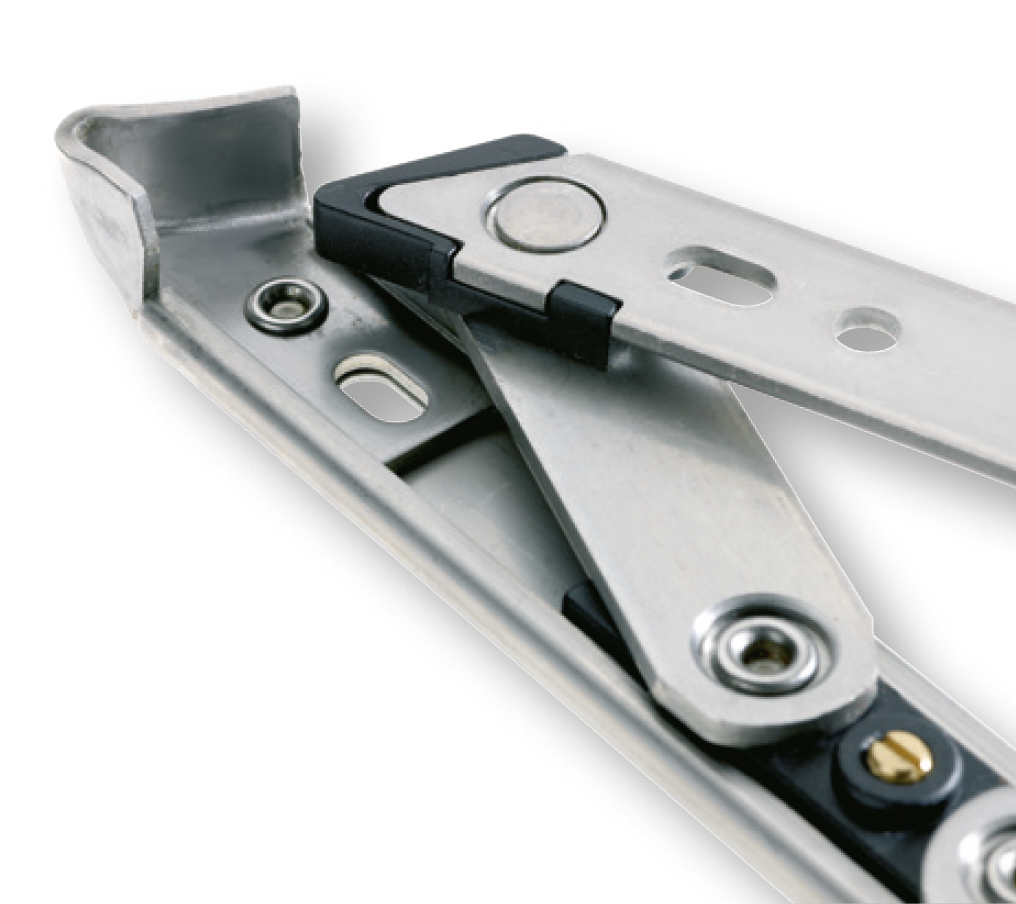

    • Manufactured from high quality 430 grade Stainless Steel with a steel end cap and reinforced link - black composite slider
    • Suitable for stack heights of 16-18mm
    • 22mm Track, 20mm vent arm

  • Performance

    • Cycle tested to over 50,000 operations
    • Egress - 16" variant can meet the requirements of BS 5588:1998 Pt 1:1990 & document B of the building regulations, meets requirements of BS 8213 Pt 1:1991

    Corrosion Resistance

    Meet requirements of BS EN 1670:2007 - grade 4 (240 hrs Salt Spray)

    • Track, Link & Rivets: Ferretic 430 Stainless Steel
    • Metal End Nib: Zinc BS1004A
    • Slider: Black composite slider
    • Pin: 304 Stainless Steel
PART NO. LENGTH (MM) OPEN ANGLE (°) MAX WEIGHT (KG) MAX VENT SIZE (MM)
HDSH10PA 254 75 40 650
HDSH10PM 254 75 40 650
HDSH16PA 406 80 50 900
HDSH16PM 406 30-50 80 900
HDTH10PA 254 50 50 700
HDTH10PM 254 50 50 700
HDTH16PA 405 50 60 1120
HDTH16PM 405 30-50 50 1120
HDTH22PA 559 50 75 1500
HDTH26PA 660 25 150 2000

Example: HDSH10PA = Triad Heavy Duty Friction Stay, Side Hung, 10"


SIZE A B C D E F G H J K L M N
10" SIDE HUNG 34.5 167.5 44.0 - - - 16 38.5 27.0 106.0 19.0 - -
16" SIDE HUNG 34.5 243.5 120.0 41.5 - - 16 38.5 90.0 139.0 24.0 - -
10" TOP HUNG 34.5 16.5 44.0 - - - 16 38.5 27.0 101.0 24.0 - -
16" TOP HUNG 34.5 243.5 120.0 41.5 - - 16 38.5 14.0 215.0 24.0 76.0 -
22" TOP HUNG 34.5 217.5 298.5 130.0 90.0 - 16 38.5 14.0 289.5 20.0 157.0 -
26" TOP HUNG 34.5 141.5 476.0 130.0 130.0 117.5 16 38.5 14.0 364.5 40.0 184.5 35.0
