Window Accessories

- 2-way adjustment +/- 2.5mm: Height and Side adjustment
- Suitable for face fitting on flush composite or timber doors

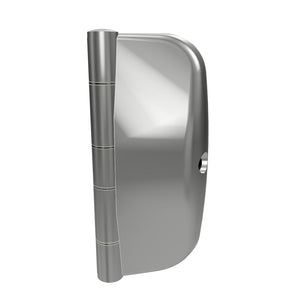

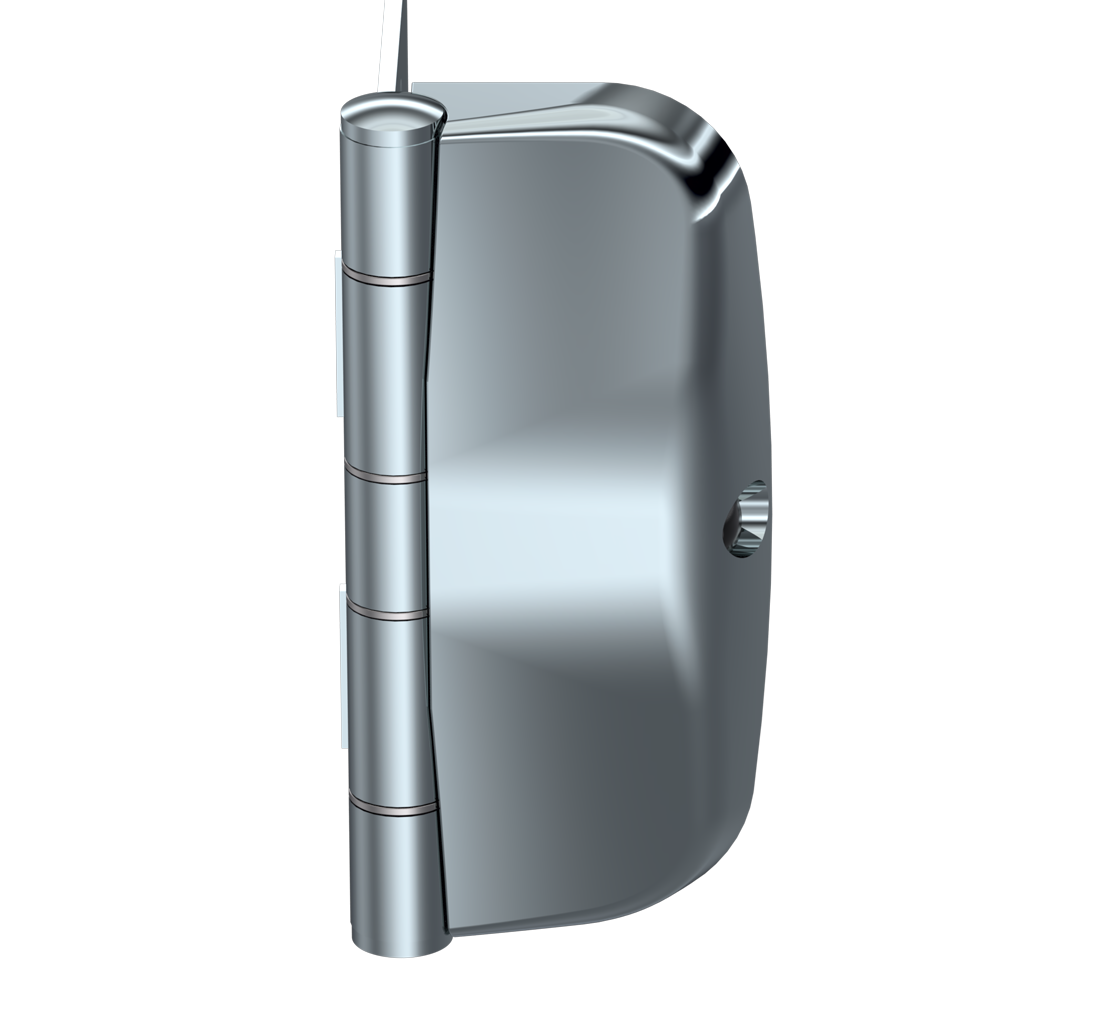

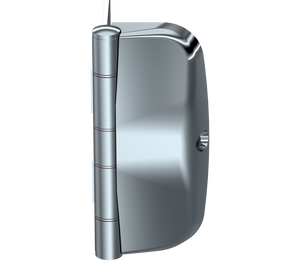

- Stunning contoured 2D hinge designed to complement Affinity window handles, door handles, letterplates, and knockers
- Robust 430 stainless steel body designed to carry up to 100kg on 3 hinges
Performance
- Endurance tested to 100,000 operations
- Load tested to 100kg on 3 hinges
Corrosion Resistance

All finishes meet requirements of BS EN 1670:2007 - grade 5 (480 hrs Salt Spray)
- Hinge Body: 430 Stainless Steel
- Hinge Cover: Zinc Alloy
- Pin: 304 Stainless Steel
- Powder Coating: White, Black, Antique Black, Anthracite Grey, Brown, Caramel, 60 microns minimum coating thickness
- PVD/Chrome Coating: Champagne Gold/Chrome/Flint/Satin Chrome & Brushed Nickel, multiple layer plating process
