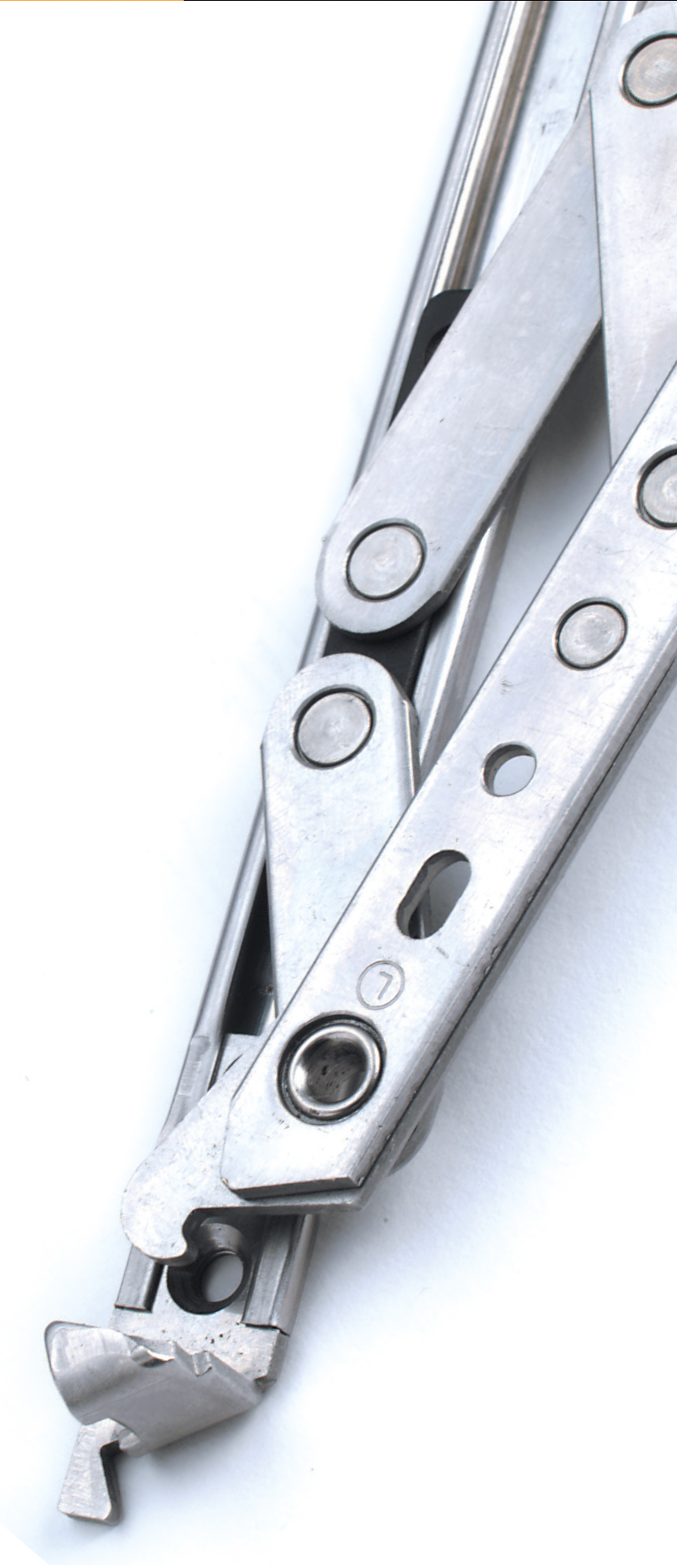

Restricted Security Friction Stays

£0.00 GBP

- A range of security top hung and side hung variants that can conform to BS7950:1997
- Advanced interlocking hook design creating two additional high level security points on a window sash
- Side Hung - 12" and 16" sizes
- Top Hung - 16", 20" and 24" sizes
- Spring loaded restrictor option available which ensures automatic re-engagement as the stay is closed
- Top hung format supplied with catches on both the left and right hand stays
- Side hung format supplied with catches on the lower stay only
- Manufactured from high quality 430 grade Stainless Steel with a steel end cap and reinforced link - black composite slider
- Suitable for stack heights of 13-17mm
Performance
- Cycle tested to over 25,000 operations
- Restricted variants meets requirements of BS6375 Pt.2 (BS EN12046)
Corrosion Resistance

Meet requirements of BS EN 1670:2007 - grade 4 (240 hrs Salt Spray)
- Track, Link & Rivets: Ferretic 430 Stainless Steel
- Slider: Black composite slider
- Pin: 304 Stainless Steel

CODE	13MM STACK HEIGHT	17MM STACK HEIGHT	SIZE	OPENING ANGLE (°)	MAX WEIGHT (kg)	MAX VENT SIZE (mm) W x H
LSRSH12P	✓	-	12	60	22	600 x 1200
LSRSH16P	✓	-	16	60	24	650 x 1200
LSRHSH12P	-	✓	12	60	22	600 x 1200
LSRHSH16P	-	✓	16	60	24	650 x 1200
SRTH16P	✓	-	16	60	20	1200 x 800
SRTH20P	✓	-	20	45	24	1200 x 900
SRTH24P	✓	-	24	40	27	1200 x 1000
SRHTH16P	-	✓	16	60	20	1200 x 800
SRHTH20P	-	✓	20	45	24	1200 x 900
SRHTH24P	-	✓	24	40	27	1200 x 1000

EXAMPLE: LSRSH12P, Security Restricted Stay, 12" Side Hung.
