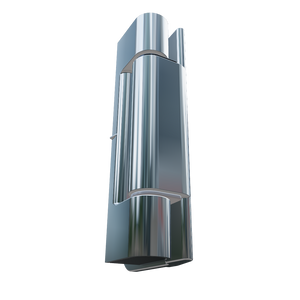

Pioneer Plus 3D Door Hinge

£0.00 GBP

- +/- 1.5mm horizontal (lateral) adjustment
- +/- 2mm vertical adjustment
- +/- 1.5mm compression adjustment
- Suitable for composite or timber doors
- Stunning contoured 3D hinge designed to complement Pioneer window handles, door handles, letterplates, and knockers
- Robust 430 stainless steel body designed to carry up to 100kg on 3 hinges
Performance
- Endurance tested to 100,000 operations
- Load tested to 100kg on 3 hinges
Corrosion Resistance

All finishes meet requirements of BS EN 1670:2007 - grade 5 (480 hrs Salt Spray)
- Hinge Body: 430 Stainless Steel
- Hinge Cover: Zinc Alloy
- Pin: 304 Stainless Steel
- Powder Coating: White, Black, Antique Black, Anthracite Grey, Brown, Caramel, 60 microns minimum coating thickness
- PVD/Chrome Coating: Champagne Gold/Chrome/Flint/Satin Chrome & Brushed Nickel, multiple layer plating process

Code Prefix	Finish	Description
PP3D	WHA	Pioneer 3D Door Hinge - White
PP3D	BLA	Pioneer 3D Door Hinge - Black
PP3D	ABA	Pioneer 3D Door Hinge - Antique Black
PP3D	GRA	Pioneer 3D Door Hinge - Anthracite Grey
PP3D	BRA	Pioneer 3D Door Hinge - Brown
PP3D	TNA	Pioneer 3D Door Hinge - Tan
PP3D	CGA	Pioneer 3D Door Hinge - Champagne Gold
PP3D	CHA	Pioneer 3D Door Hinge - Chrome
PP3D	SCA	Pioneer 3D Door Hinge - Satin Chrome
PP3D	BNA	Pioneer 3D Door Hinge - Brushed Nickel
PP3D	FLA	Pioneer 3D Door Hinge - Flint

Example: PP3DWHA = Pioneer 3D Hinge, White
