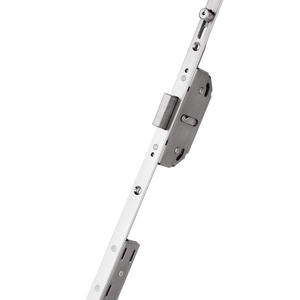

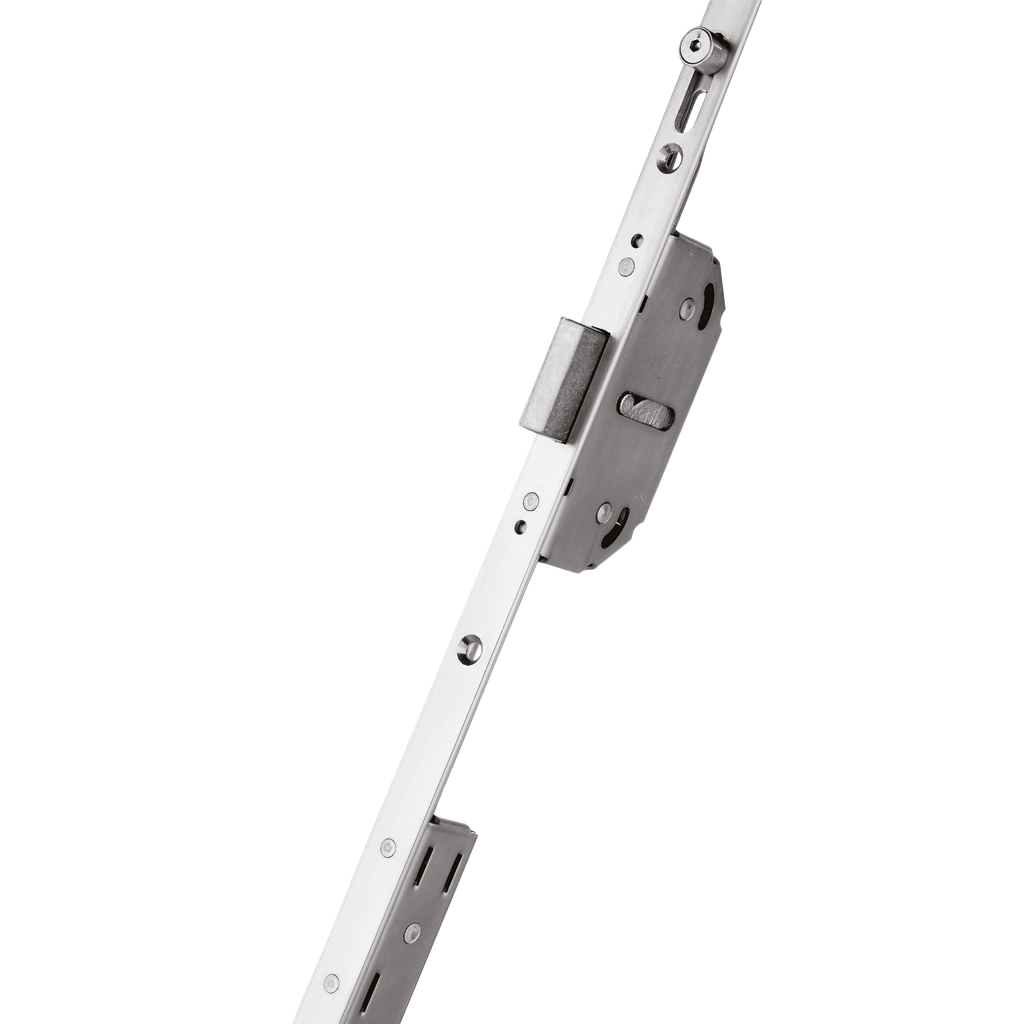

Pioneer - 3 Deadbolt, 4 Roller Door Bolt

£0.00 GBP

- Trivalent Silver Finish
- 35mm backset suits the majority of profiles
- 2 top and bottom deadbolts with centre deadbolt and shootbolt options for enhanced security
- 4 Roller cams for effortless sealing
- Suitable for lever-lever, off-set lever/pad or off-set lever/lever applications
- 16mm deadbolt throw
- Latch can be changed from the faceplate without removing the unit from the profile
- Shootbolt options for enhanced security
- Non-handed
- 80, 160 and 260mm shootbolts available
Performance
- Endurance tested to 100,000 operations
Corrosion Resistance

All finishes meet requirements of BS EN 1670:2007 - grade 4 (240 hrs Salt Spray)
- All Steel Components: Steel C1008, Trivalent Silver Finish
- Centre Latch, Deadbolt and Rollers: Brass, Nickel Plated
- Additional Information: For profile related packers and keeps please contact your sales advisor)
- Box Qty: 5 per box
- Keeps: 10 per box

CODE	DESCRIPTION
DLPN353D4RT	35MM 3 DEADBOLT, FOUR ROLLER DOOR LOCK
DKCLDLT	CENTRE LATCH KEEP (L. HAND)
DKCLDRT	CENTRE LATCH KEEP (R. HAND)
DARKLSS/RSS	ROLLER KEEPS
OPTIONAL PARTS
MBRCSS	MULTI BOLT RETAINING CLIP
DKFDKSS	DOUBLE FRENCH DOOR KEEP
DKSDKLSS	SINGLE RESI DOOR KEEP (L. HAND)
DKSDKRSS	SINGLE RESI DOOR KEEP (R. HAND)
DASSB80SS	80MM SHORT THROW SHOOTBOLT S/STEEL
DALSB80SS	80MM LONG THROW SHOOTBOLT S/STEEL
DASSB160SS	160MM SHORT THROW SHOOTBOLT S/STEEL
DALSB160SS	160MM LONG THROW SHOOTBOLT S/STEEL
DASSB260SS	260MM SHORT THROW SHOOTBOLT S/STEEL
DALSB260SS	260MM LONG THROW SHOOTBOLT S/STEEL
ADBESS	DOOR BOLT EXTENSION C/W CAM
ADBESSO	DOOR BOLT EXTENSION NO CAM

Door Hardware Table

TYPE	BACKSET	ROLLER CAMS	DEAD BOLT	OPTIONAL SHOOTBOLT
4 DEADBOLT, 4 ROLLER	35	4	3	2
