Pioneer - 2 Hook, 2 Roller Door Bolt - Stainless Steel

£0.00 GBP

- Trivalent Silver Finish with Stainless Steel faceplate
- 35mm backset suits the majority of profiles
- 2 opposing hooks, centre deadbolt with shootbolt options for enhanced security
- 2 Roller cams for effortless sealing

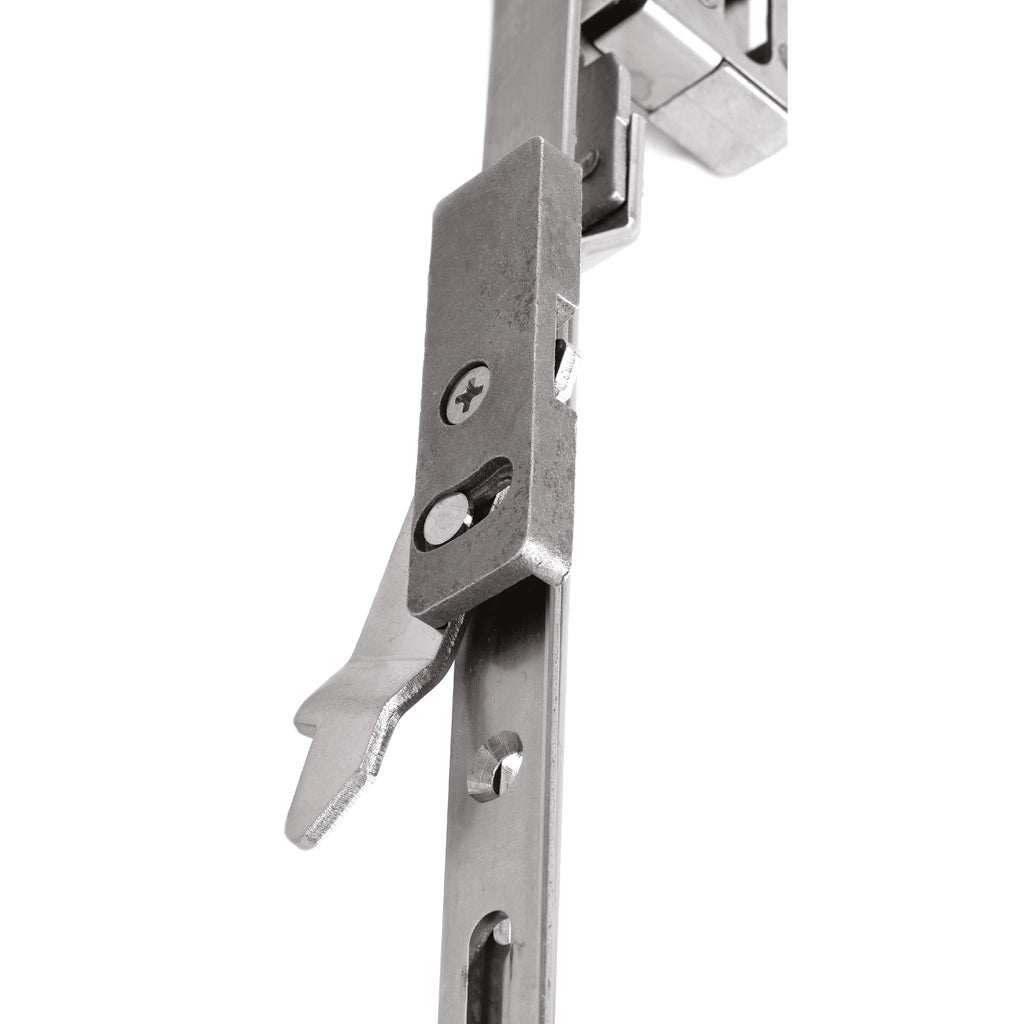

- Unique sash lifting mechanism which maintains the correct sash to frame alignment for trouble free operation
- Suitable for lever-lever, off-set lever/pad or off-set lever/lever applications
- 16mm deadbolt throw
- Latch can be changed from the faceplate without removing the unit from the profile
- Shootbolt options for enhanced security
- Non-handed
- 80, 160 and 260mm shootbolts available
Performance
- Endurance tested to 100,000 operations
Corrosion Resistance

All finishes meet requirements of BS EN 1670:2007 - grade 4 (240 hrs Salt Spray)
- Faceplate & Keep Body: 430 Stainless Steel
- All Steel Components: Steel C1008, Trivalent Silver Finish
- Centre Latch, Deadbolt and Rollers: Brass, Nickel Plated
- Sash-Lifter device and receiver: Brass, Nickel Plated
- Additional Information: For packers please contact your sales advisor
- Box Qty: 5 per box

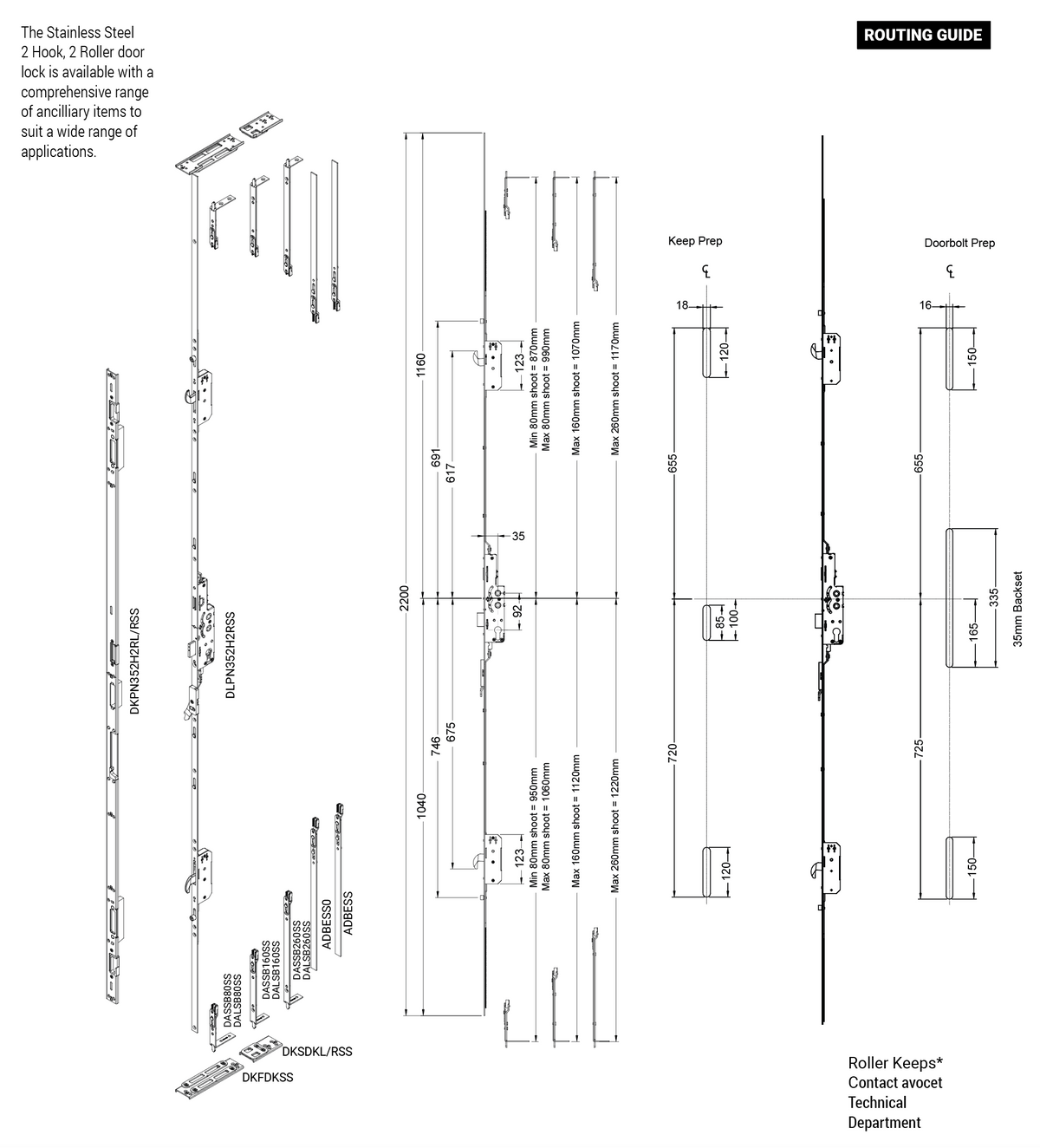

Door Hardware Table

CODE	DESCRIPTION
DLPN352H2RSS	35MM BACKSET DOORBOLT
DKPN352H2RLSS	FULL LENGTH KEEP (L. HAND)
DKPN352H2RRSS	FULL LENGTH KEEP (R. HAND)
OPTIONAL PARTS
MBRCSS	MULTI BOLT RETAINING CLIP
DKFDKSS	DOUBLE FRENCH DOOR KEEP
DKSDKLSS	SINGLE RESI DOOR KEEP (L. HAND)
DKSDKRSS	SINGLE RESI DOOR KEEP (R. HAND)
DASSB80SS	80MM SHORT THROW SHOOTBOLT S/STEEL
DALSB80SS	80MM LONG THROW SHOOTBOLT S/STEEL
DASSB160SS	160MM SHORT THROW SHOOTBOLT S/STEEL
DALSB160SS	160MM LONG THROW SHOOTBOLT S/STEEL
DASSB260SS	260MM SHORT THROW SHOOTBOLT S/STEEL
DALSB260SS	260MM LONG THROW SHOOTBOLT S/STEEL
ADBESS	DOOR BOLT EXTENSION C/W CAM
ADBESSO	DOOR BOLT EXTENSION NO CAM

Door Hardware Table

TYPE	BACKSET	ROLLER CAMS	DEAD BOLT	HOOKS	SHOOTBOLT (OPTIONAL)	SASH LIFTER	KEEP ACCESSORIES
TYPE	BACKSET	ROLLER CAMS	DEAD BOLT	HOOKS	SHOOTBOLT (OPTIONAL)	SASH LIFTER	1 PIECE	3 PIECE	5 PIECE
STAINLESS STEEL - 2 HOOK, 2 ROLLER	35	2	1	2	2	✓	✓	✓	✓
