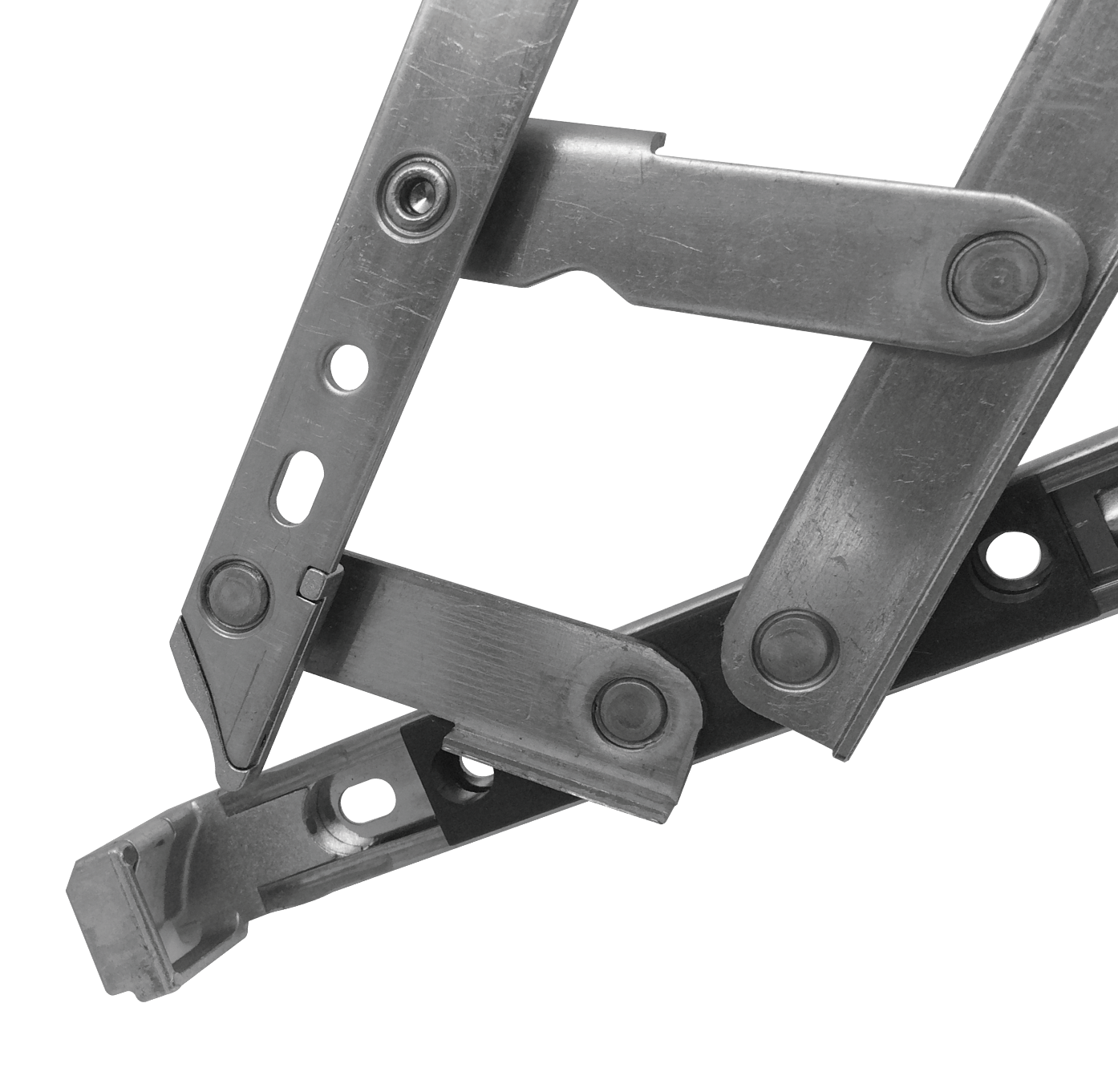

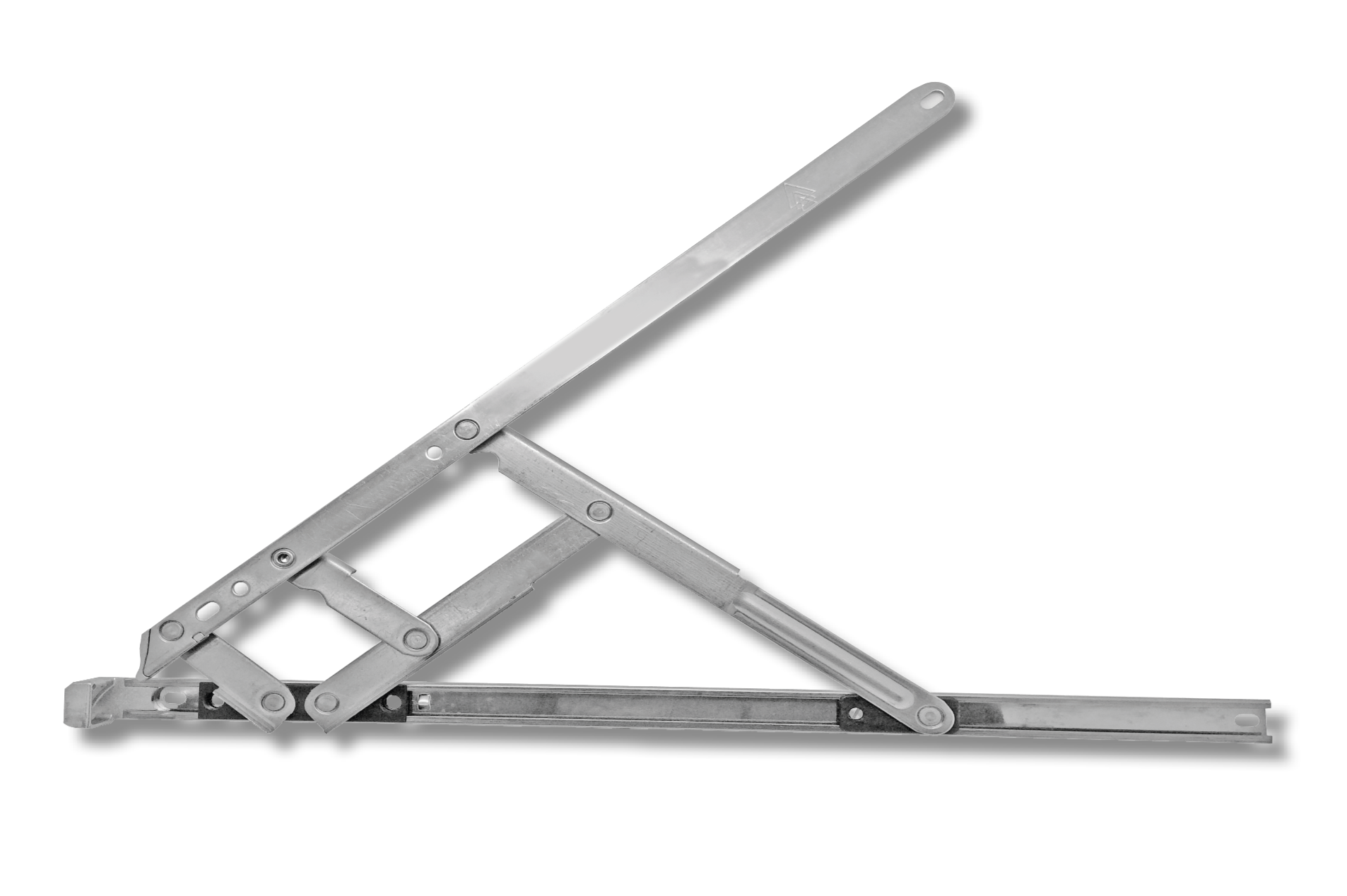

Phocas Heavy Duty Friction Stays

£0.00 GBP

- A range of top hung and side hung variants
- Uniquely fitted end cap with an active compression spring to give the ultimate seal every time the window is used
- Side Hung - 12" and 16" sizes
- Top Hung - 8", 10", 12", 16", 20" and 24" sizes
- 13mm and 17mm stack heights suitable for all popular profiles
- BBA Approved - Report No: 2812
Performance
- Cycle tested to over 25,000 operations, and tested to BS6375 Pt.1:2004 and Pt.2:1987
Corrosion Resistance

Meet requirements of BS EN 1670:2007 - grade 4 (240 hrs Salt Spray)
- Track, Link & Rivets: Ferretic 430 Stainless Steel
- Metal End Cap: Zinc BS1004A
- Slider: Black composite slider
- Pin: 304 Stainless Steel

PART NO.	STACK HEIGHT (13mm)	STACK HEIGHT (17mm)	SIZE	OPEN ANGLE (°)	MAX WEIGHT (kg)	MAX VENT SIZE (mm) W x H	BOX QTY
SH12PHD	✓	-	12	54	30	600 x 1350	30
HSH12PHD	-	✓	12	54	30	600 x 1350	30
SH16PHD	✓	-	16	85	40	750 x 1350	30
HSH16PHD	-	✓	16	85	40	750 x 1350	30
SH20PHD	✓	-	20	47	50	900 x 1350	30
HSH20PHD	-	✓	20	47	50	900 x 1350	30
