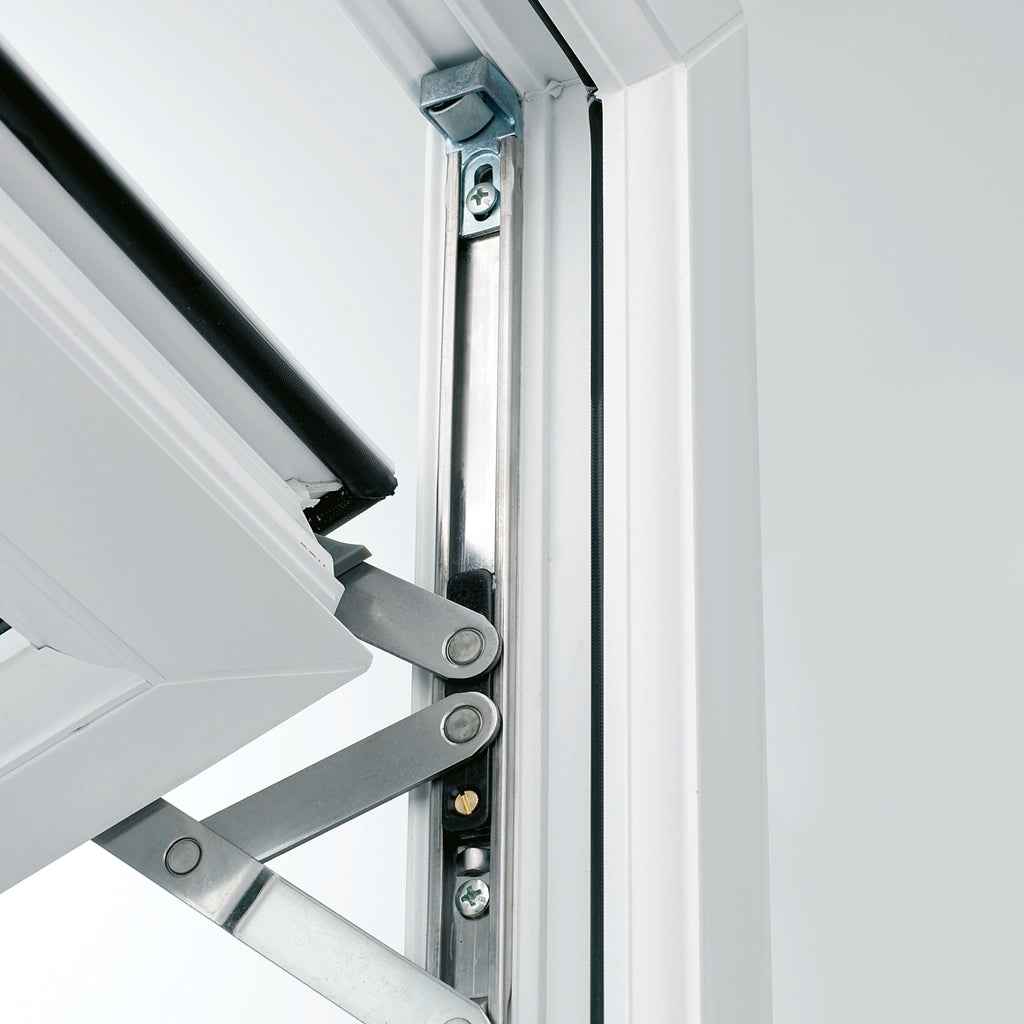

Phocas Friction Stays

£0.00 GBP

- A range of top hung and side hung variants

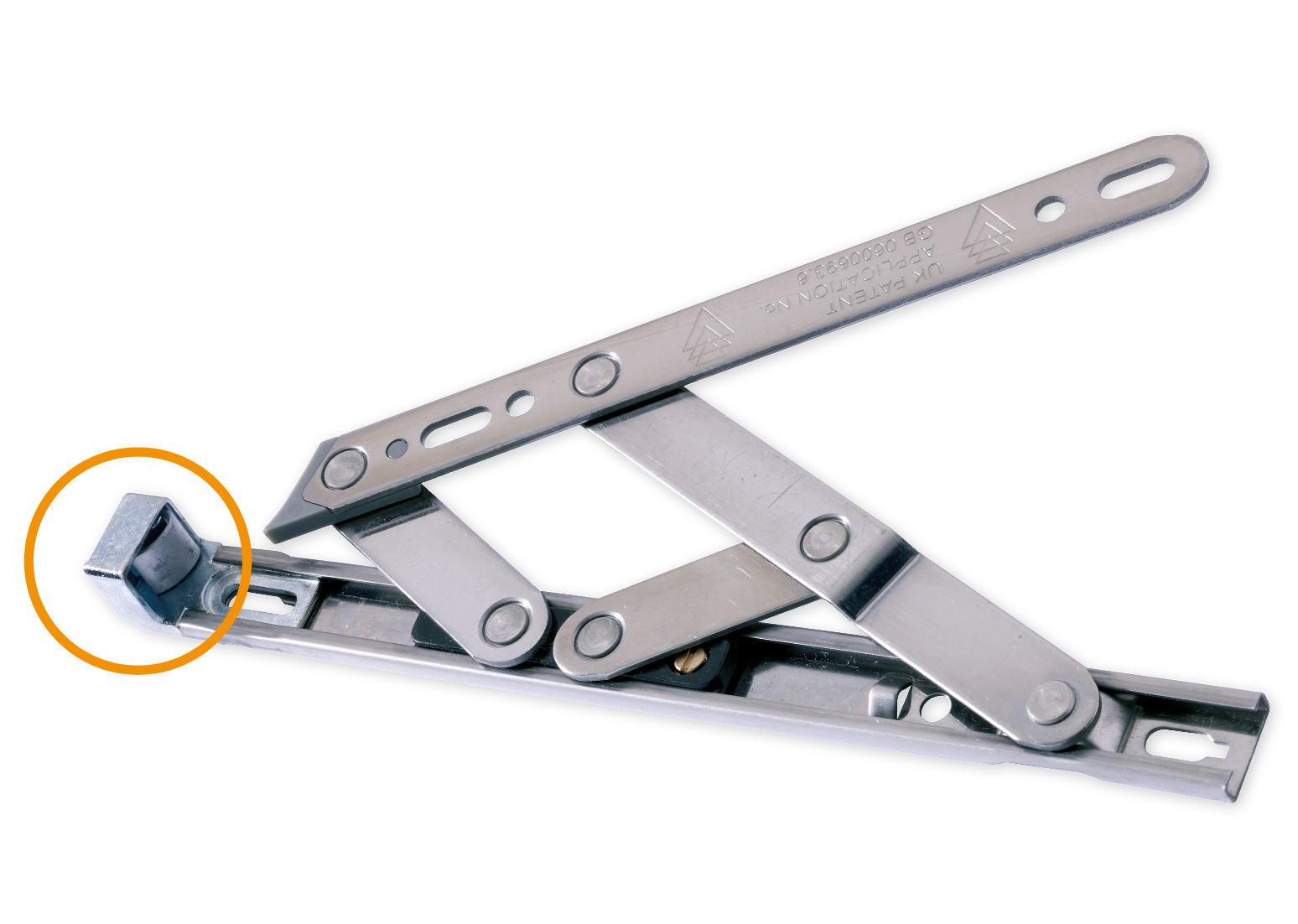

- Uniquely fitted end cap with an active compression spring to give the ultimate seal every time the window is used
- Side Hung - 12" and 16" sizes
- Top Hung - 8", 10", 12", 16", 20" and 24" sizes
- 13mm and 17mm stack heights suitable for all popular profiles
- BBA Approved - Report No: 2812
Performance
- Cycle tested to over 25,000 operations, and tested to BS6375 Pt.1:2004 and Pt.2:1987
Corrosion Resistance

Meet requirements of BS EN 1670:2007 - grade 4 (240 hrs Salt Spray)
- Track, Link & Rivets: Ferretic 430 Stainless Steel
- Metal End Cap: Zinc BS1004A
- Slider: Black composite slider
- Pin: 304 Stainless Steel

PART NO.	STACK HEIGHT (13mm)	STACK HEIGHT (17mm)	SIZE	OPEN ANGLE (°)	MAX WEIGHT (kg)	MAX VENT SIZE (mm) W x H	BOX QTY
ASH12PA	✓	-	12	60	22	600 x 1200	50
AHSH12PAA	-	✓	12	60	22	600 x 1200	40
ASH16P	✓	-	16	60	24	650 x 1200	25
AHSH16PA	-	✓	16	60	24	650 x 1200	20
ATH08PA	✓	-	8	60	12	1200 x 350	50
AHTH08PA	-	✓	8	70	12	1200 x 350	40
ATH10PA	✓	-	10	70	14	1200 x 400	50
AHTH10PA	-	✓	10	70	14	1200 x 400	40
ATH12PA	✓	-	12	60	16	1200 x 550	50
AHTH12PA	-	✓	12	60	16	1290 x 550	40
ATH16PA	✓	-	16	60	20	1200 x 800	25
AHTH16PA	-	✓	16	60	20	1200 x 800	20
ATH20PA	✓	-	20	40	24	1200 x 900	25
AHTH20PA	-	✓	20	40	24	1200 x 900	20
ATH24PA	✓	-	24	40	27	1200 x 1000	25
AHTH24PA	-	✓	24	40	27	1200 x 1000	20
ATH24PHDA	✓	-	24	40	35	1200 x 1200	25
AHTH24PHDA	-	✓	24	40	35	1200 x 1200	20

Table Example
