Phocas Easy Clean Friction Stays
Phocas Easy Clean Friction Stays
Phocas Easy Clean Friction Stays

Phocas Easy Clean Friction Stays

£0.00 GBP

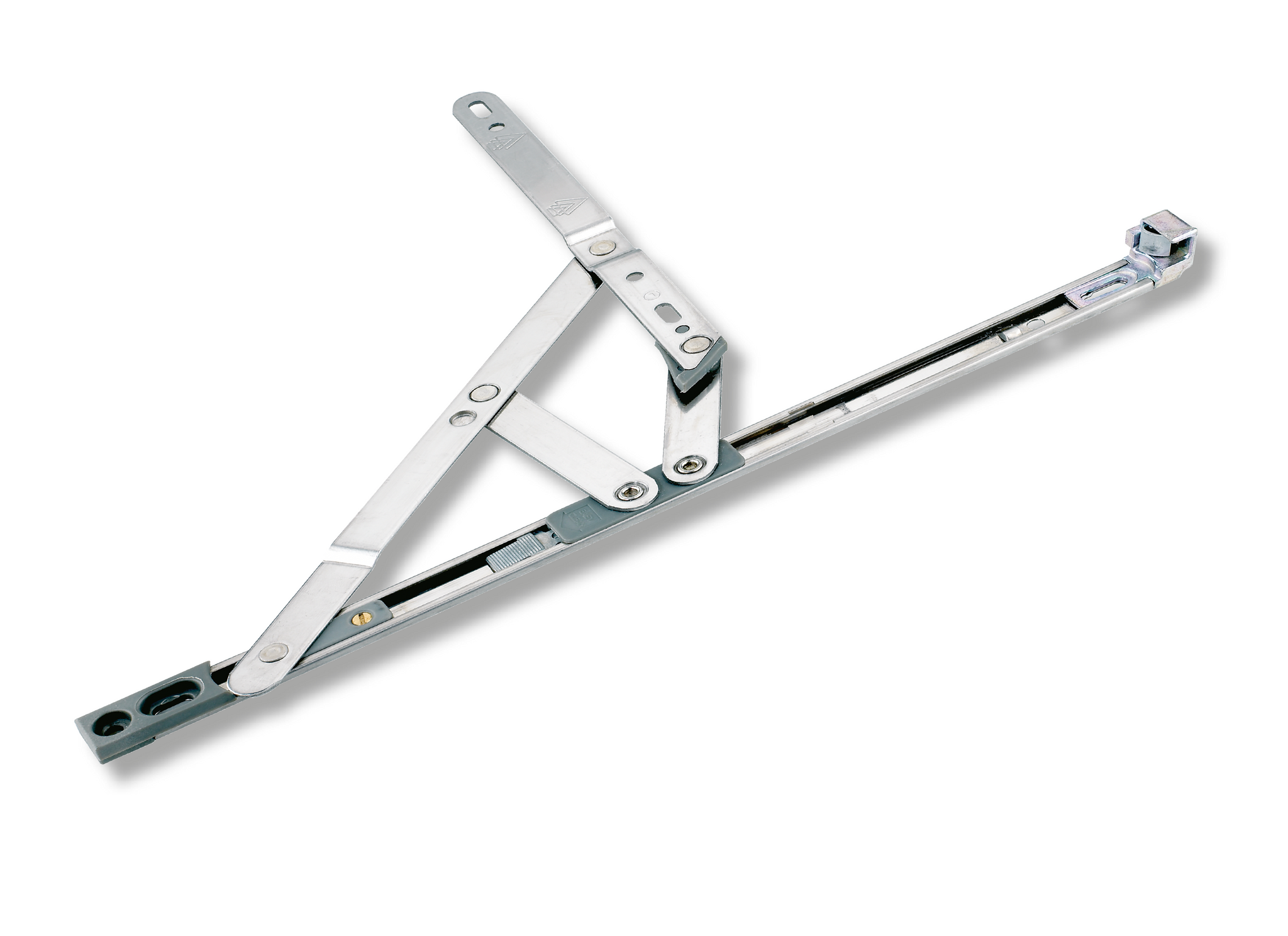

    • The Phocas range of easy clean side hung friction stays
    • Uniquely fitted end cap with an active compression spring to give the ultimate seal every time the window is used
    • 90 degree opening egress facility
    • Side Hung - 12" and 16" sizes

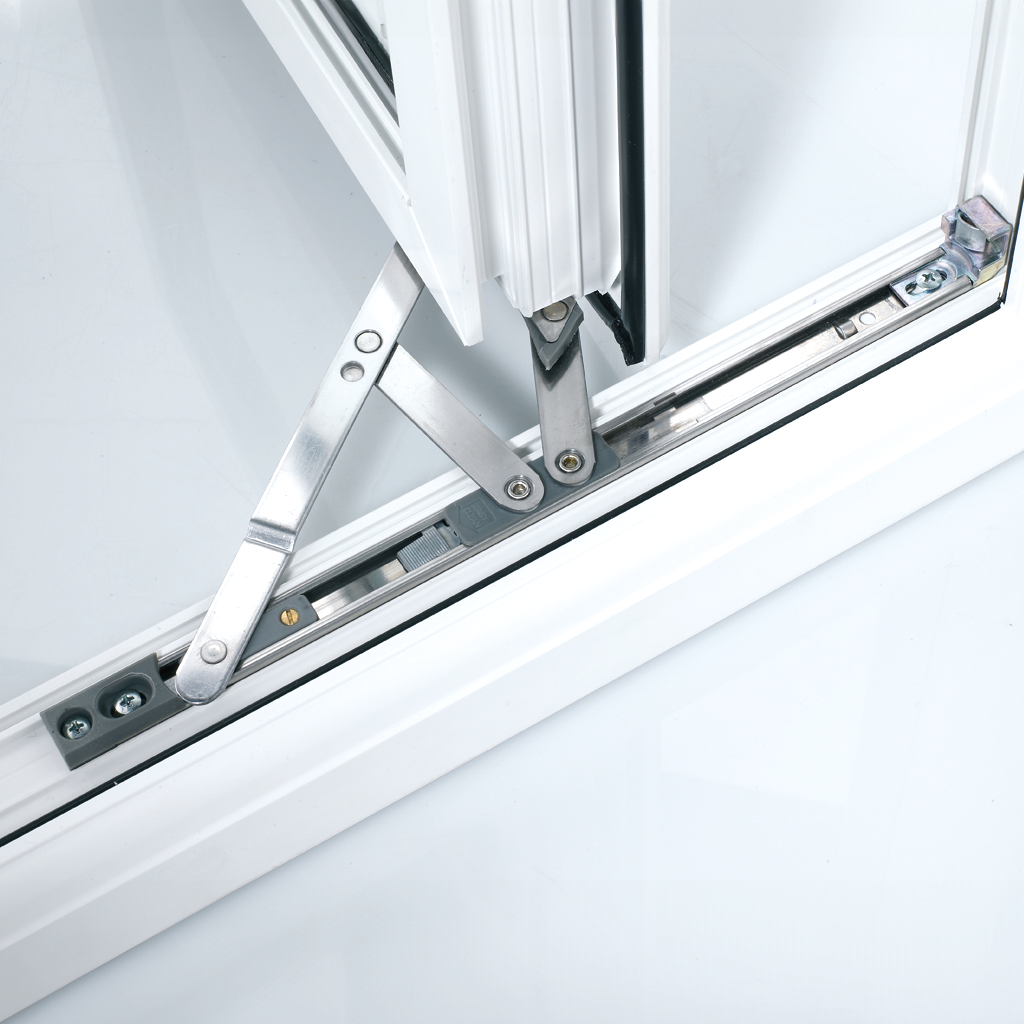

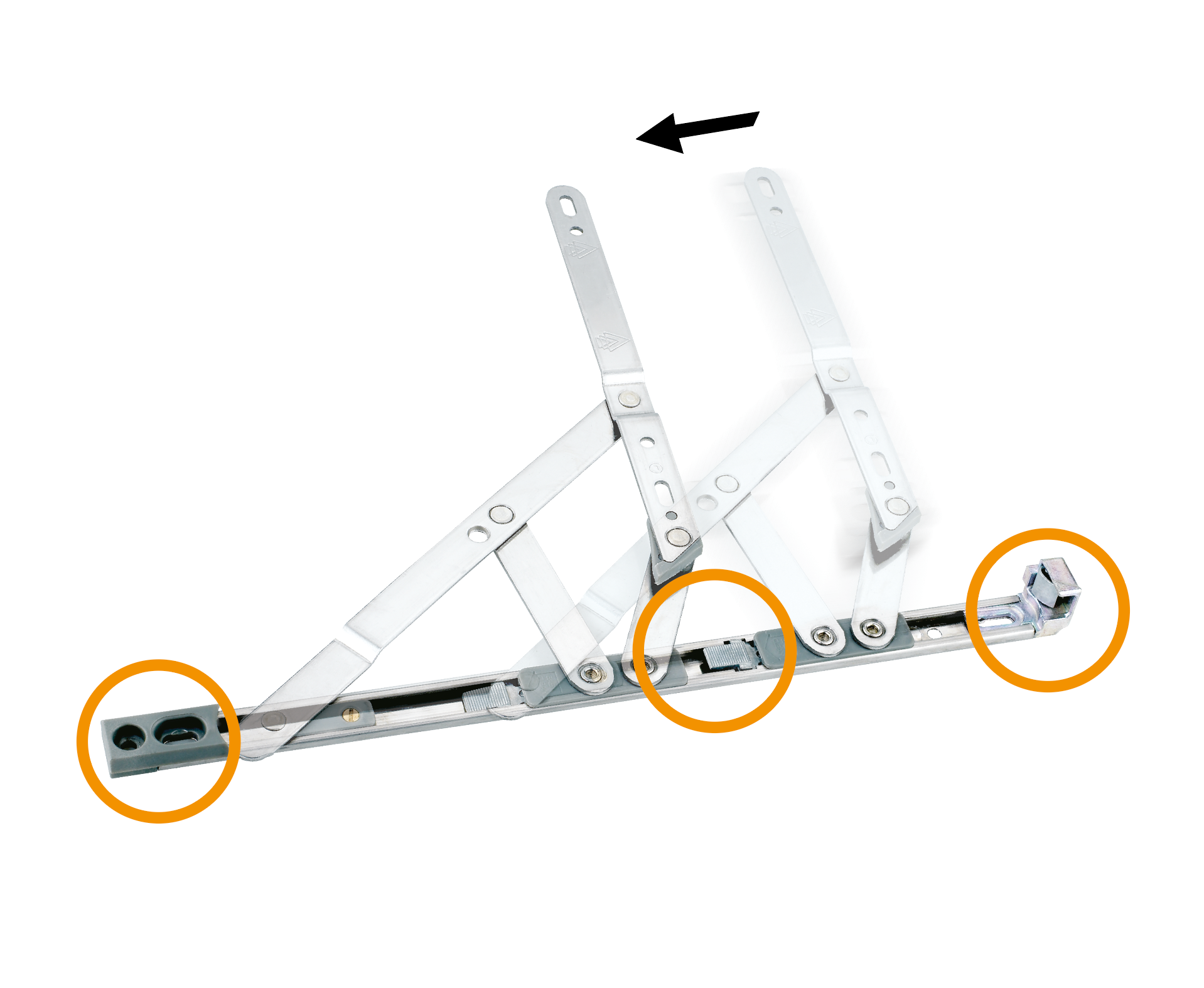

    • Easy clean function with press to release button which automatically re-engages to the normal operating position when the window is closed using the window handle
    • 13mm and 17mm stack heights suitable for all popular profiles
    • Supplied in standard and long reach variants to suit all uPVC profiles

  • Performance

    • Cycle tested to over 25,000 operations, and tested to BS6375 Pt.1:2004 and Pt.2:1987

    Corrosion Resistance

    Meet requirements of BS EN 1670:2007 - grade 5 (480 hrs Salt Spray)

    Egress Facility

    Can meet requirements of BS 5588:1998 Pt 1:1990 and document B of the building regulations, meets requirements of BS 8213 Pt 1:1991. BBA Test Report No: 2818

    • Track, Link & Rivets: Ferretic 430 Stainless Steel
    • Metal End Cap: Zinc BS1004A
    • Slider: Black composite slider
    • Pin: 304 Stainless Steel
PART NO. STACK HEIGHT (mm) SIZE OPEN ANGLE (°)   MAX WEIGHT (KG) MAX VENT SIZE (mm)
W x H		 BOX QTY
AECSH12P-40 13mm (LONG REACH) 12 90 22 600 x 1200 40
AECSH16P-20 13mm (LONG REACH) 16 90 24 650 x 1200 20
AHECSH12P-40 17mm (LONG REACH) 12 90 22 600 x 1200 40
AHECSH16P-20 17mm (LONG REACH) 16 90 24 650 x 1200 20
TAECSH12P 13mm (STANDARD REACH) 12 90 22 600 x 1200 40
TAECSH16P 13mm (STANDARD REACH) 16 90 24 650 x 1200 20
TAHECSH12P 17mm (STANDARD REACH) 12 90 22 600 x 1200 40
TAHECSH16P 17mm (STANDARD REACH) 16 90 24 650 x 1200 20

SIZE A B C D E F G H J K (13/17mm) L (13/17mm) M (13/17mm) N (13/17mm)
12"
LONG REACH		 23 17.5 262 16 13/17 60 75 147 40.5 24.5/11.5 209.5/115 198/101.5 76.5/N/A
16"
LONG REACH		 23 17.5 373 16 13/17 60 75 289 40.5 73/11 115/207.5 101.5/257 100/61.5
12"
STANDARD REACH		 23 17.5 269 16 13/17 46 48 127 40.5 24.5 196.8/126 181.5/115 N/A
16"
STANDARD REACH		 23 17.5 369.5 16 13/17 48 58 275 40.5 98/79.5 13/141 126.5 N/A

All 90 degree opening Phocas Friction Stays are available in both a standard and long reach format for maximum compatibility with the majority of uPVC window profiles. Please refer to the table listed below. For more information contact us on 01484 725000.

PROFILE STACK HEIGHT (mm) LONG REACH STANDARD REACH
ALUPLAST IDEAL 60 17 ✓ -
ALUPLAST IDEAL 70 17 ✓ -
DECEUNINCK 2500 17 ✓ -
DECEUNINCK 2800 17 ✓ -
DECEUNINCK 3000 17 ✓ -
DURAFLEX DIAMOND 65 Q-LON BEVELLED 13 - ✓
DURAFLEX DIAMOND 650 Q-LON FEATURED 13 - ✓
DURAFLEX DIAMOND 700 Q-LON BEVELLED 13 - ✓
DURAFLEX DIAMOND 70 Q-LON FEATURED 13 - ✓
EUROCELL 60 13 - ✓
EUROCELL ULTIMATE 70 15 - ✓
FUROCELL EURO-LOGIK 17 ✓ -
EUROCELL EURO LOGIK OVOLO 17 ✓ -
EUROCELL MODUS 17 ✓ -
KBE MARK 5 58mm 13 - ✓
KBE C70 17 - ✓
KOMMERLING 070 GOLD 17 ✓ -
KOMMERLING GOLD 58mm 17 ✓ -
LB 6000 17 ✓ -
LB 7000 13 ✓ -
LB 8000 BEVELLED 17 ✓ -
LB 8000 CONTOUR 17 ✓ -
LINIAR CHAMFERED 70mm 17 ✓ -
LINIAR SCULPTURED 70mm 17 ✓ -
PLASTMO INDEX 62mm 17 - ✓
PLASTMO INDEX 70mm 17 - ✓
PROFILE 22 60MM 13 ✓ -
PROFILE 22 FB70 13 ✓ -
PROFILE 22 F170 13 ✓ -
PROFILE 22 FS70 13 ✓ -
PROFILE 22 OPTIMA CHAMFERED 13 ✓ -
PROFILE 22 OPTIMA SCULPTURED 13 ✓ -
REHAU CALIBRE 17 - ✓
REHAU S703 TRITEC 17 - ✓
REHAU S703 TRITEC INTEGRAL 17 - ✓
REHAU S706 INTEGRAL 17 - ✓
REHAU EDGE FULLY SCULPTURED 17 - ✓
SELECTA 8000 60MM 17 ✓ -
SELECTA ADVANCE 70 CHAMFERED 17 - ✓
SELECTA ADVANCE 70 SCULPTURED 17 - ✓
SPECTUS ELITE 63 BEVELLED 17 - ✓
SPECTUS ELITE 63 OVOLO 17 - ✓
SPECTUS ELITE 70 BEVELLED 17 - ✓
SPECTUS ELITE 70 OVOLO 17 - ✓
STATUS ZENDOW 17 ✓ -
SWISH 24-7 13 ✓ -
SYNSEAL EVOLVE 60 15 ✓ -
SYNSEAL LEGEND 70 15.5 - ✓
SYNSEAL SHIELD 13 - ✓
SYNSEAL SILHOUETTE 13 - ✓
SYNSEAL SYNERJY 13 - ✓
VEKA MATRIX 58MM 13 ✓ -
VEKA MATRIX 70MM 13 ✓ -
VEKA FULLY SCULPTURED 70 13 ✓ -
WHS ECLIPSE 17 - ✓
WHS ESTHETIQUE 17 - ✓
WHS RUSTIQUE 2 17 ✓ -
WHS SYSTEM 10 62MM CHAMFERED 17 ✓ -
WHS SYSTEM 10 62MM CHAMFERED 17 ✓ -
WHS SYSTEM 10 62MM SCULPTURED 17 ✓ -
WHS SYSTEM 10 70MM CHAMFERED 17 ✓ -
WHS SYSTEM 10 70MM SCULPTURED 17 ✓ -
