Window Restrictor Stays

£0.00 GBP

- Used in conjunction with friction stays and butt hinges
- Designed for top or side hung windows
- Conforms to BS6375 part 2 & BS8213
- Designed to limit opening of window to 100mm

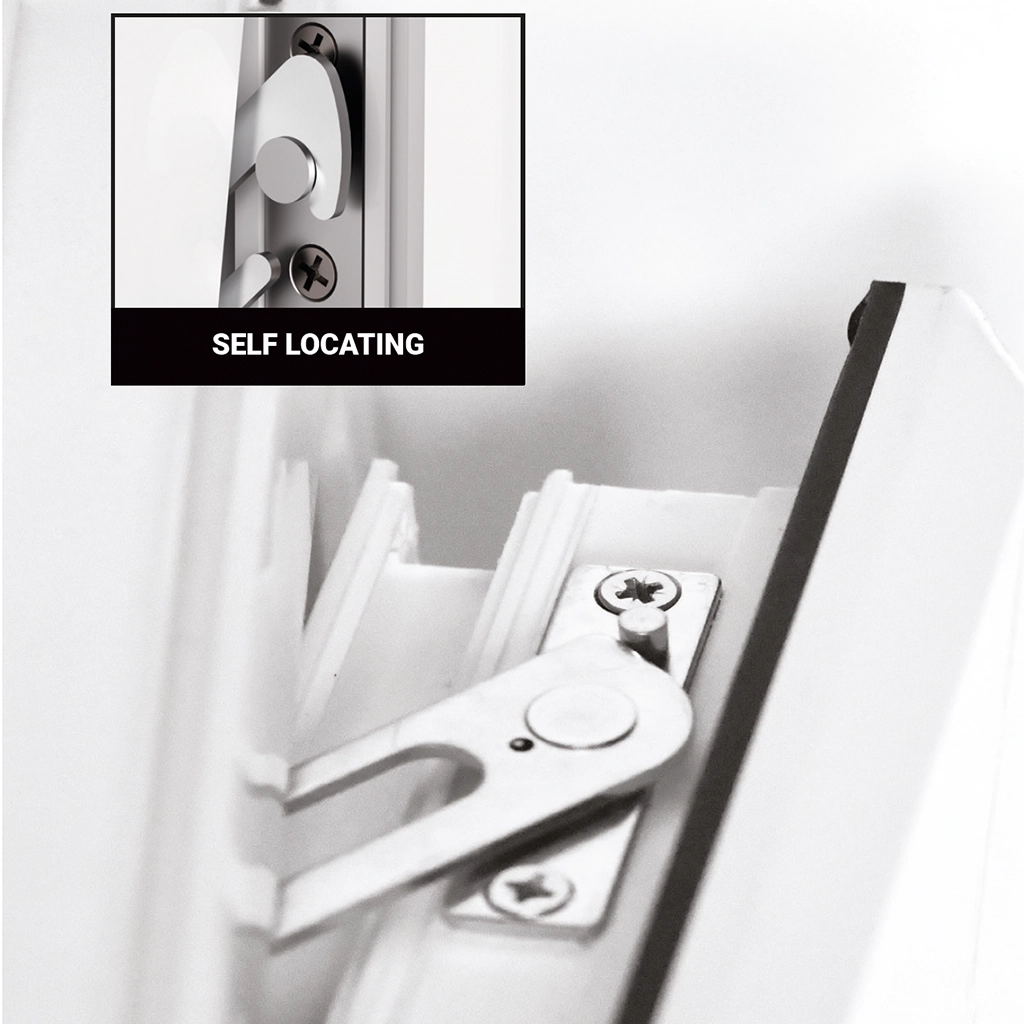

- Automaticallt re-engages restricted position on closing of window
- Available in left and right hand formats
- Can be released to facilitate full opening of the window
Performance
- Conforms to BS6375 part 2 & BS8213
Corrosion Resistance

Meet requirements of BS EN 1670:2007 - grade 3 (96 hrs Salt Spray)
- All metal components: Steel C1008
- Coating details: Trivalent plated 20-25 microns coating thickness

CODE PRE-FIX	FINISH	BUTTON OPTIONS (ADD ONE OPTION TO CODE)			HANDING (ADD ONE OPTION TO CODE)		SPINDLE (ADD ONE OPTION TO CODE)	NON-LOCK	ALUMINIUM
		BLACK	WHITE	GREEN	LEFT	RIGHT
WHAP	WH	BB	WB	GB	L	R	9/15/20/25/30/35/40/55/60	NL	A
WHAP	BL	BB	-	-	L	R	9/15/20/25/30/35/40/55/60	NL	A
WHAP	AB	BB	-	-	L	R	9/15/20/25/30/35/40/55/60	-	A
WHAP	TB	BB	-	-	L	R	9/40	-	A
WHAP	GR	BB	-	-	L	R	9/15/20/25/30/35/40/55/60	-	A
WHAP	CG	BB	-	-	L	R	9/15/20/25/30/35/40/55/60	-	-
WHAP	CH	BB	-	-	L	R	9/15/20/25/30/35/40/55/60	-	-
WHAP	SC	BB	-	GB	L	R	9/15/20/25/30/35/40/55/60	NL	-
WHAP	BN	BB	-	-	L	R	9/15/20/25/30/35/40/55/60	-	-
