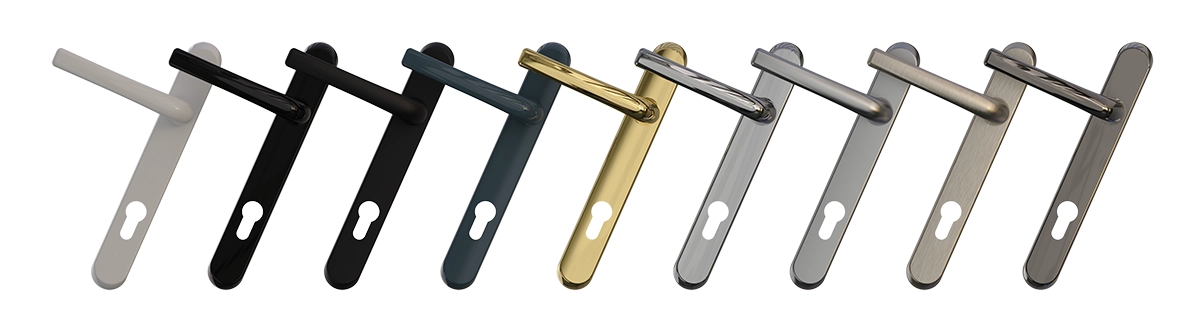

Affinity Plus Door Handle - 122mm Screw Centres - Lever Lever Format

£0.00 GBP

- Affinity Plus Door Handle range suited with Affinity window handles, door hinges, knockers and letterplates
- Handles are non-handed allowing them to be used either left or right
- White and black powder coated are available in aluminium only
- Supplied with spring cassette and spindles for 70mm profile as standard - add suffix 44 to suit composite doors
- 12mm Backplate depth allows for standard size euro cylinders
Performance
- Endurance tested to 100,000 operations
- Pull tested to 100kg
Corrosion Resistance

All finishes meet requirements of BS EN 1670:2007 - grade 5 (480 hrs Salt Spray)
- Handle Lever/Backplate: Zinc Alloy BS1004A or Aluminium A360
- Spindle: Steel C1008, Zinc plated & yellow passivated
- Powder Coating: White, Black, Antique Black, Anthracite Grey, 60 microns minimum coating thickness
- PVD/Chrome Coating: Champagne Gold/Chrome/Flint/Satin Chrome & Brushed Nickel, multiple layer plating process

CODE	FINISH	LEVER/LEVER	SHORT BACKPLATE (122mm S/Cs)	ALUMINIUM (ADD A)	COMPOSITE (ADD 44)
DHAP	WH	LL	S	A	44
DHAP	BL	LL	S	A	44
DHAP	AB	LL	S	-	44
DHAP	GR	LL	S	-	44
DHAP	CG	LL	S	-	44
DHAP	CH	LL	S	-	44
DHAP	SC	LL	S	-	44
DHAP	BN	LL	S	-	44
DHAP	FL	LL	S	-	44

Example: DHAPWHLLSA = Affinity Plus Door Handle, White, Lever/Lever, Short Backplate, 122mm centre, Aluminium
