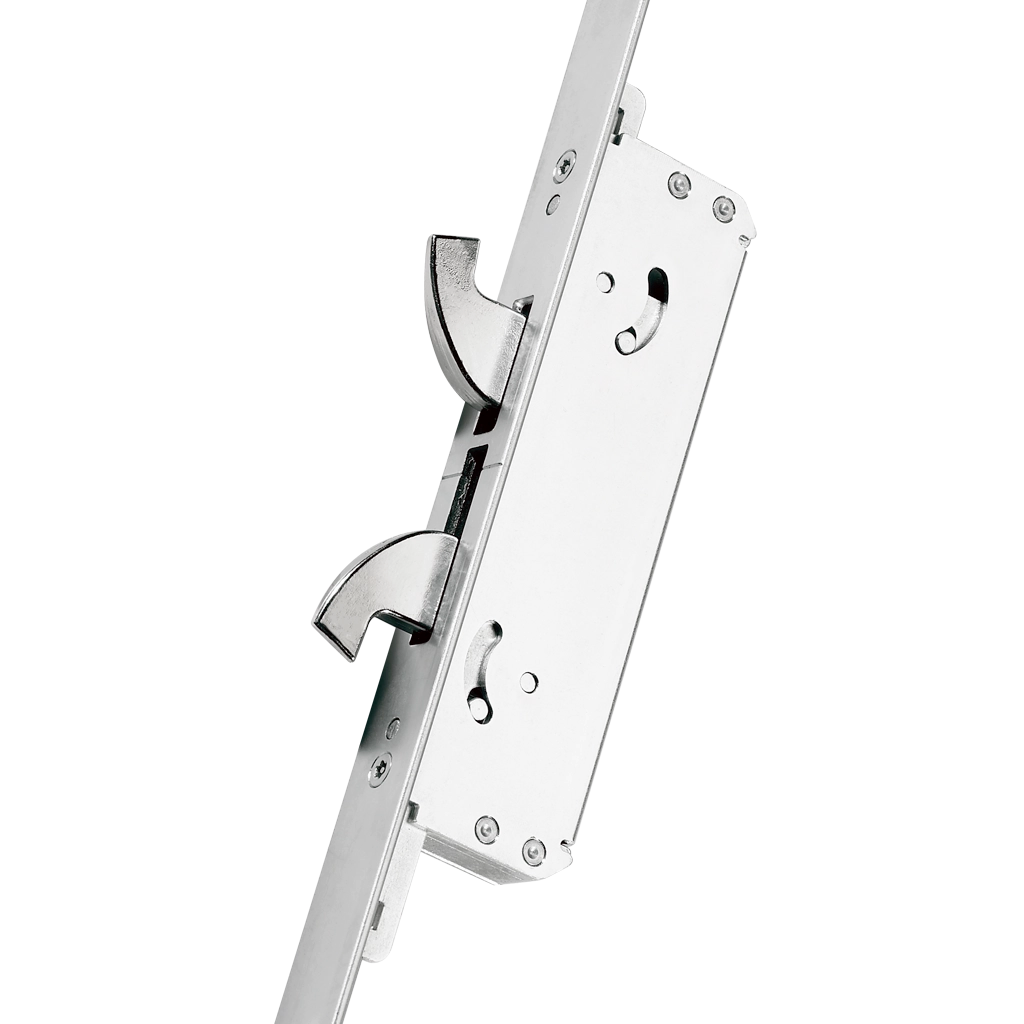

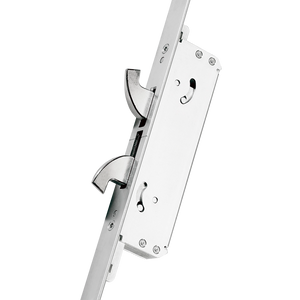

Affinity Bastion - Composite / Timber Door Bolt

£0.00 GBP

- For Composite and timber doors
- Trivalent Silver Finish
- 35mm & 45mm backsets to suit the majority of profiles
- Available with 20mm faceplate with radiused ends or white edge banded
- 4 opposing hooks with 24mm hook throw for maximum security against lifting attacks
- Spindle Centres: 92/62
- 16mm deadbolt throw
- Suitable for lever-lever, off-set lever/pad or off-set lever/lever applications
- Sprung loaded reversible latch can be changed from the faceplate without removing the unit from the profile
Performance
- Endurance tested to 100,000 operations
Corrosion Resistance

All finishes meet requirements of BS EN 1670:2007 - grade 4 (240 hrs Salt Spray)
- Faceplate & Keep Body: 430 Stainless Steel
- All Steel Components: Steel C1008, Trivalent Silver Finish
- Centre Latch and Deadbolt: Brass, Nickel Plated
- Additional Information: Keeps available with back boxes
- Box Qty: 5 per box

Door Hardware Table

CODE	DESCRIPTION
DLBAS35T	35MM BACKSET 4 HOOK DOOR LOCK
DLBAS45T-A	45MM BACKSET 4 HOOK DOOR LOCK
DLBAS35W	35MM BACKSET 4 HOOK DOOR LOCK - WHITE EDGE BANDED
DLBAS45W	45MM BACKSET 4 HOOK DOOR LOCK - WHITE EDGE BANDED
DKCDCLBLT-A	CENTRE LATCH KEEP - LEFT HAND
DKCDCLBRT-A	CENTRE LATCH KEEP - RIGHT HAND
DKCDDHKBT-A	DOUBLE HOOK KEEP
