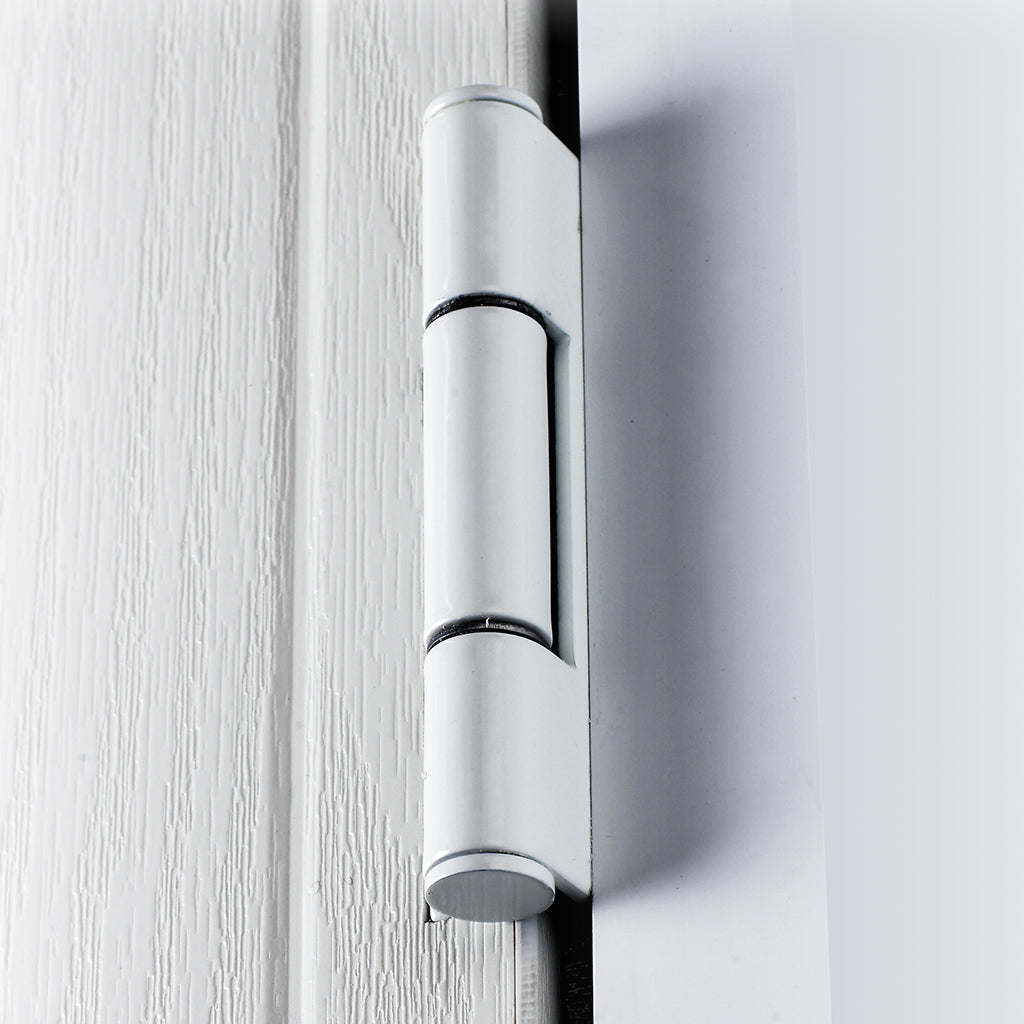

Affinity 3D Butt Hinge

• Meets the security requirements of PAS024

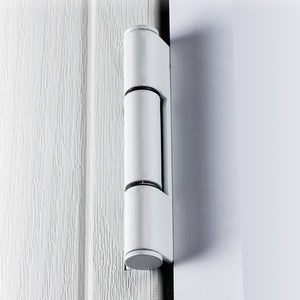

• Discrete traditional Butt hinge look with active 3D adjustment

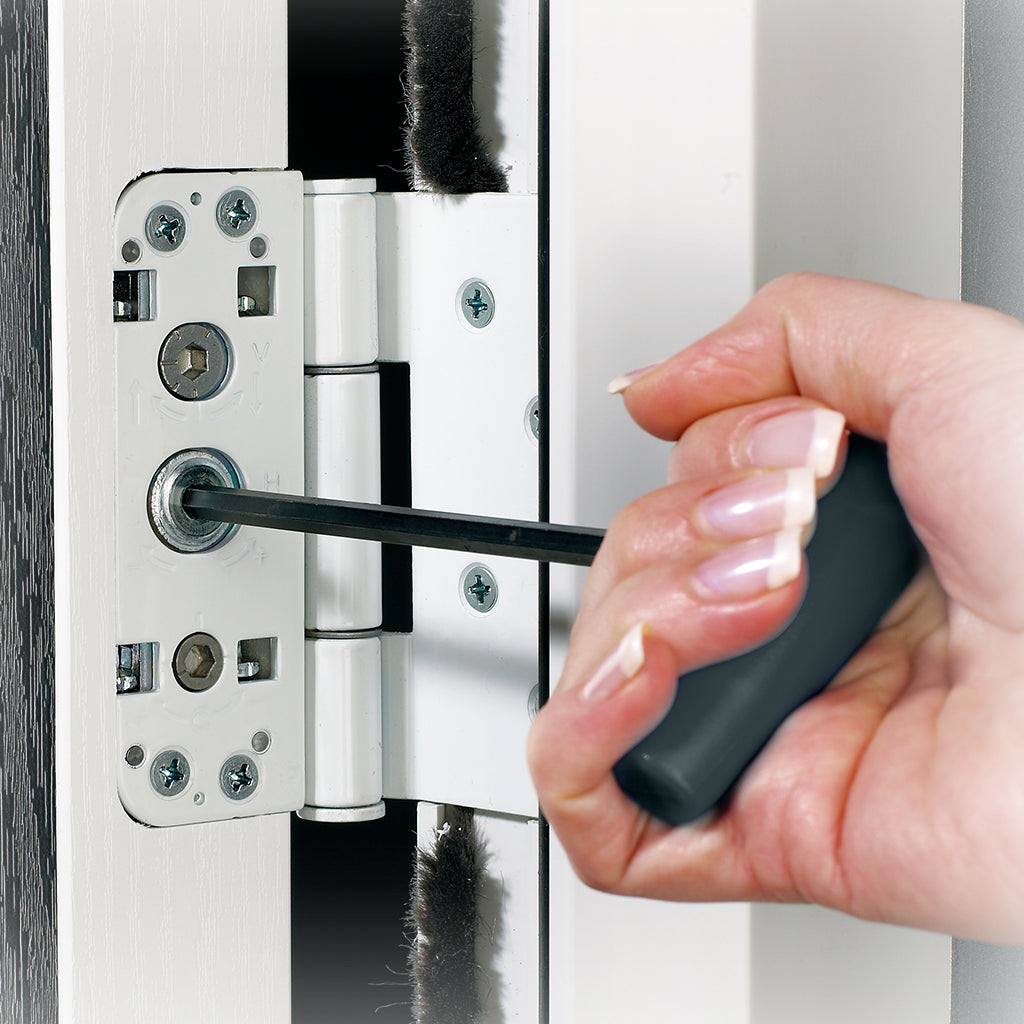

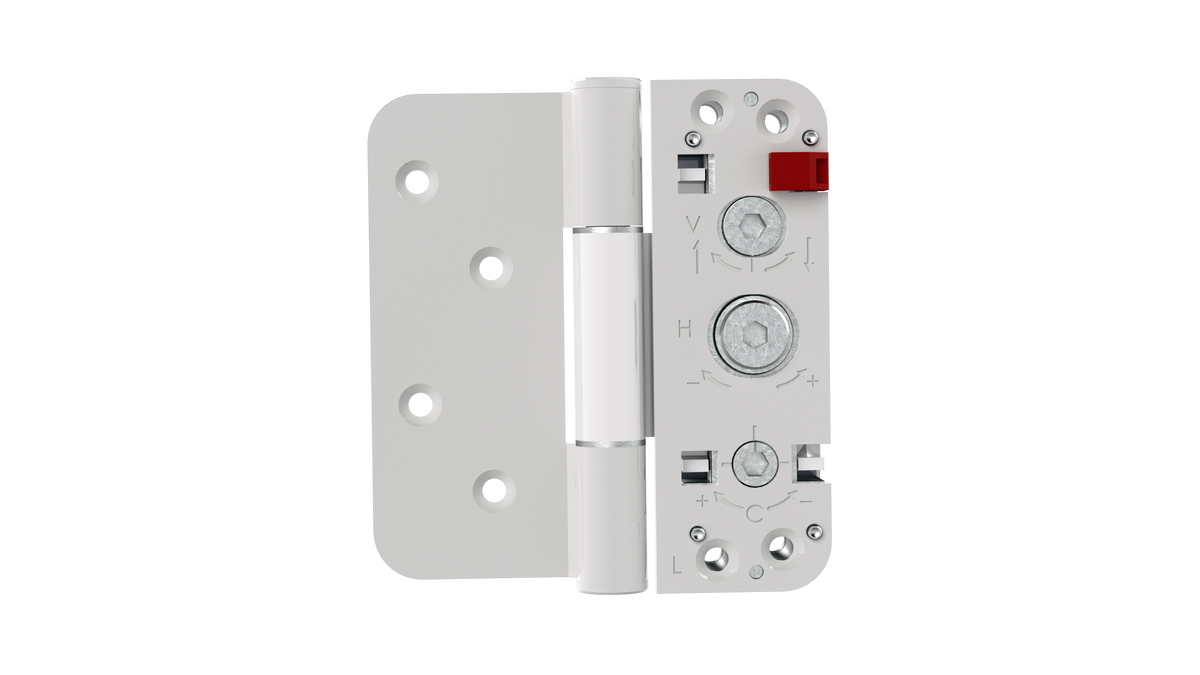

• Simple allen key control over independent vertical, horizontal and compression adjustment - no need to release any fixings on the door leaf
• 0.75mm compression adjustment
• +/- 4mm horizontal (lateral) adjustment
• +/- 2mm vertical adjustment

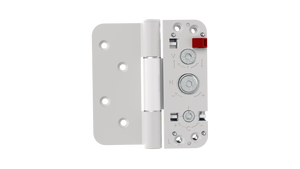

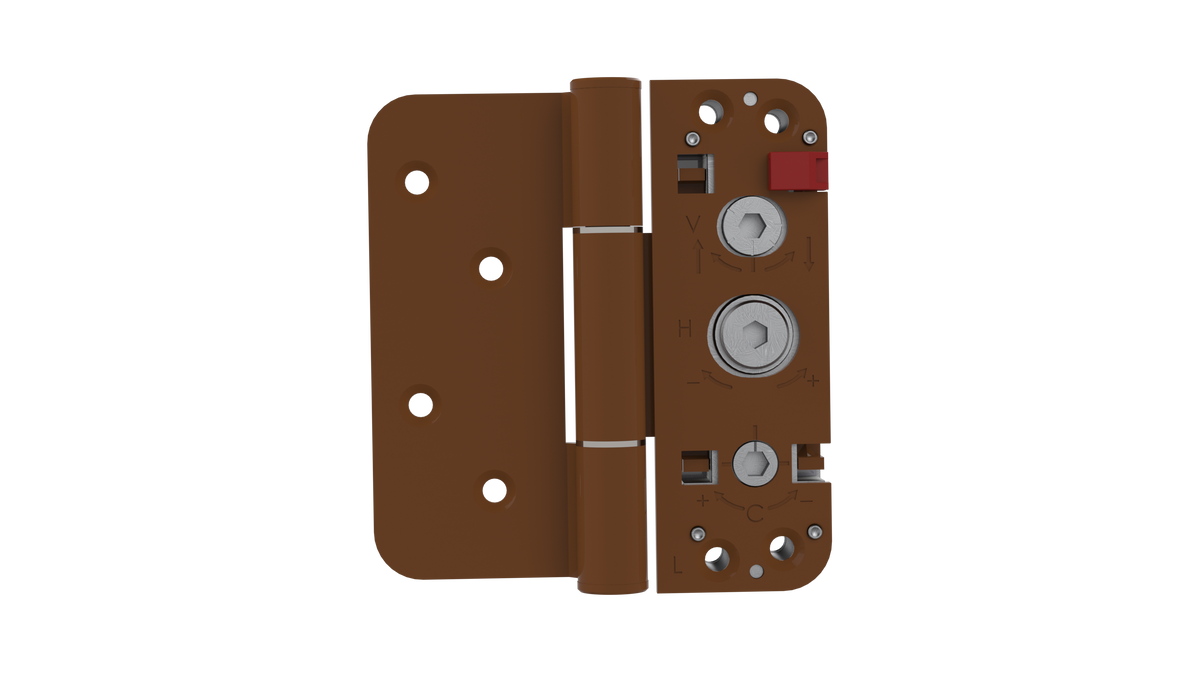

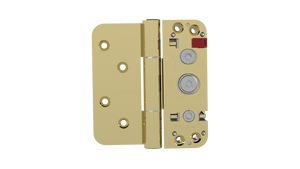

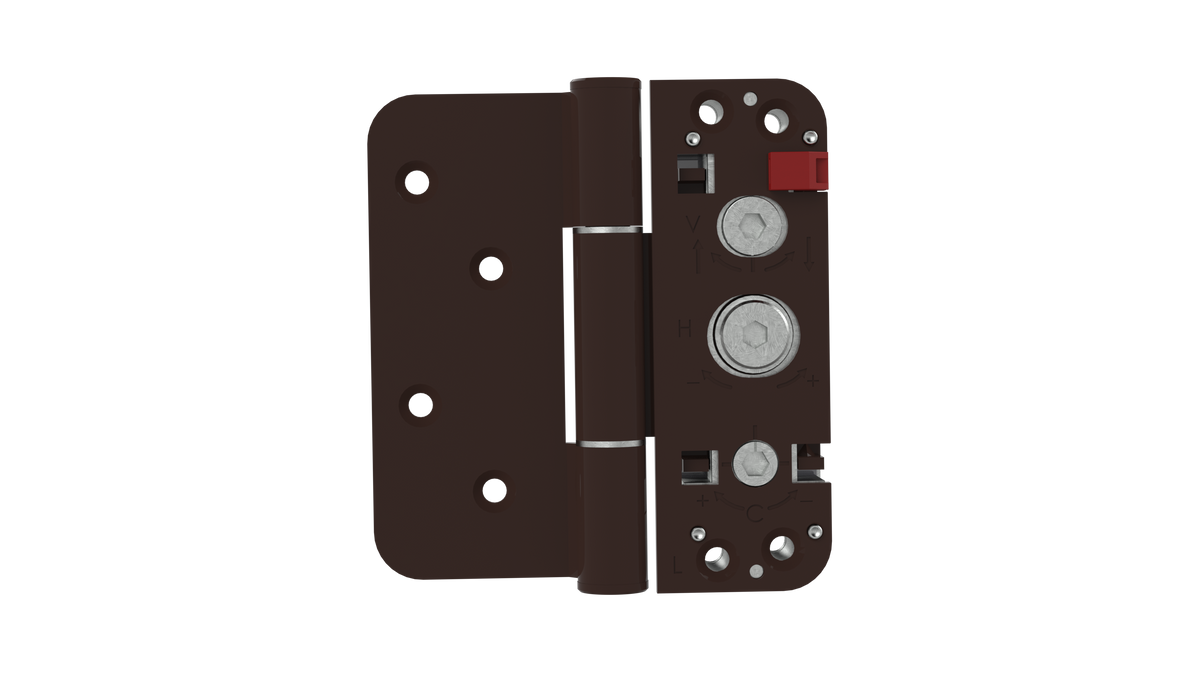

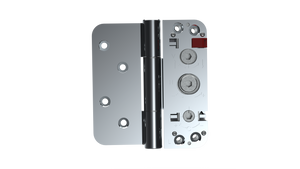

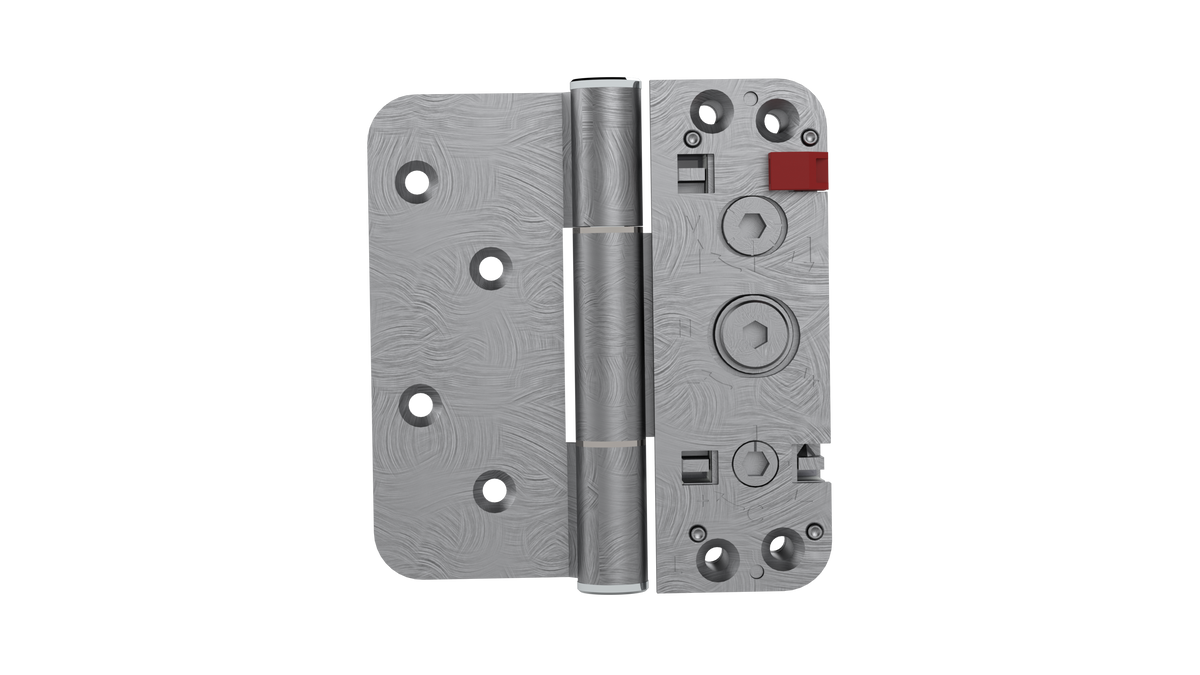

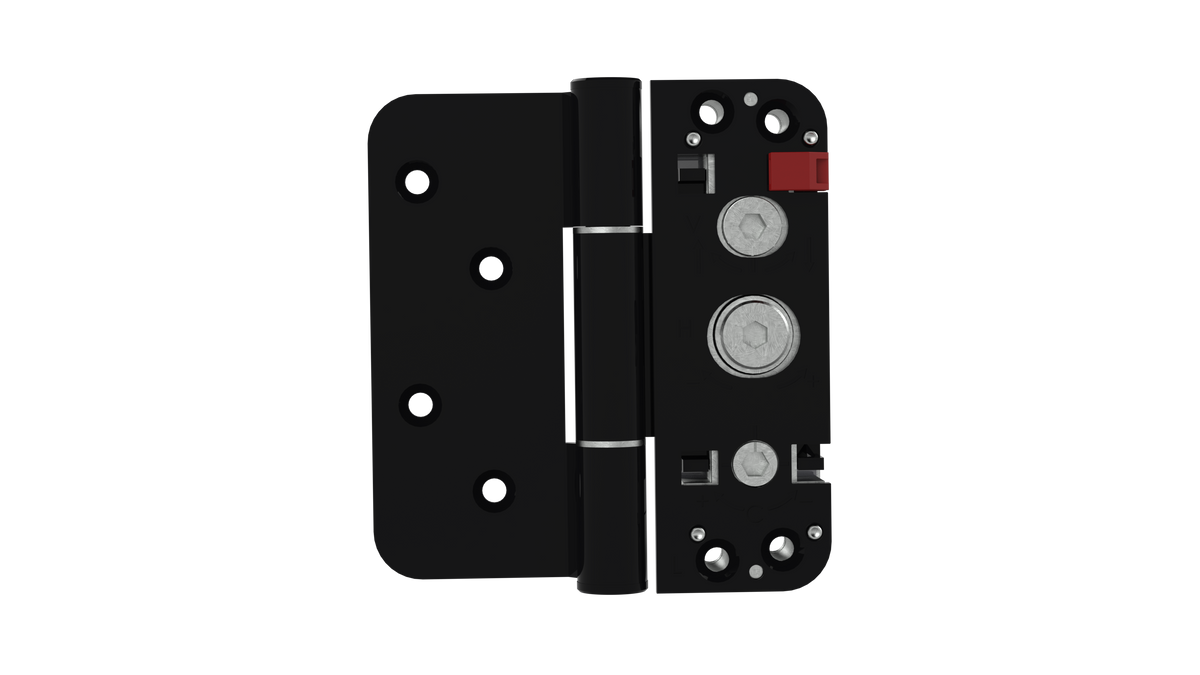

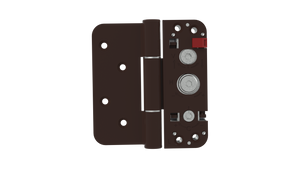

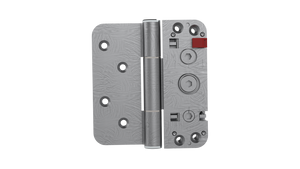

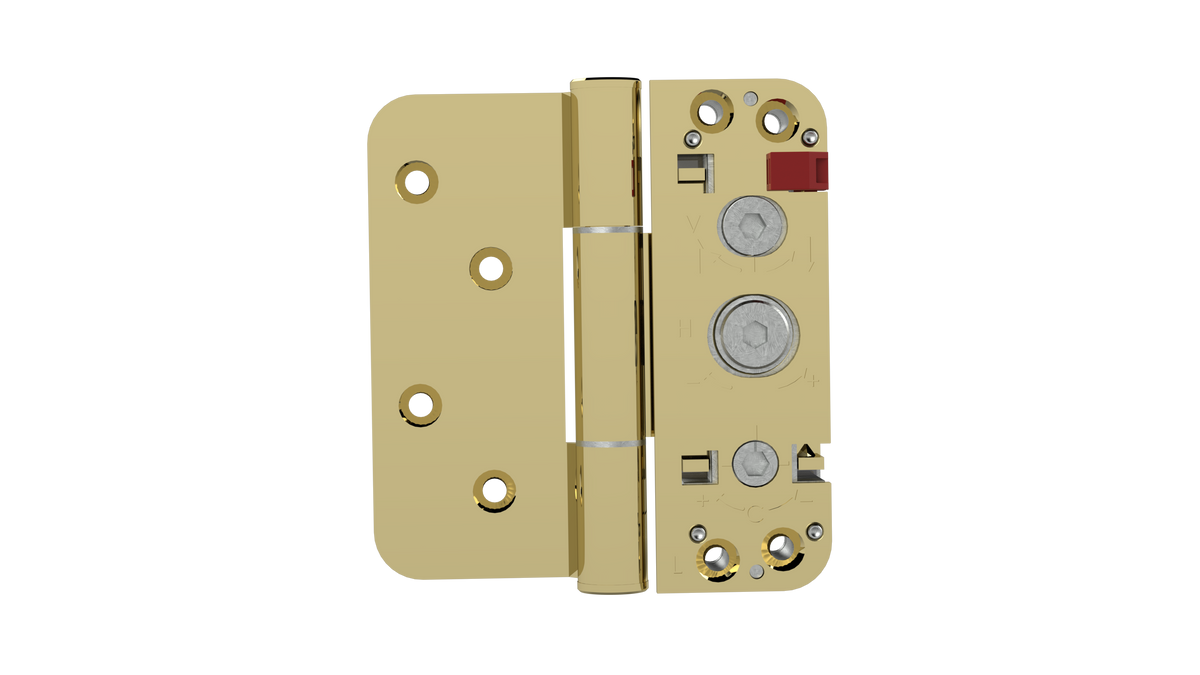

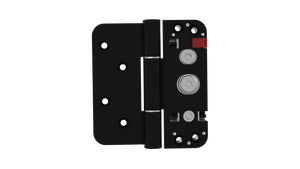

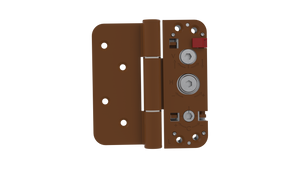

• Available in White, Black, Brown, Caramel, Champage Gold, Chrome & Trivalent finishes

Performance:

• Endurance tested to 100,000 operations in accordance to BS EN 12209:2003.
• Load tested to 100kg on 3 hinges.

Corrosion Resistance

• All finishes meet requirements of BS EN 1670:2007 - grade 5 (480 hrs Salt Spray)

• Hinge Leaf, Body, Pins: Carbon Steel/Zinc
  Powder Coating: White, Black, Caramel, Brown, 60 microns minimum coating thickness
• PVD/Chrome Coating: Champagne Gold/Chrome/Flint/Satin Chrome, multiple layer plating process
